Signature™ Printed Metal Nameplates

Features

  • NEW! CMYK color matching now available for Signature™ Printed Metal Nameplates at NO ADDITIONAL CHARGE!
  • NEW! Variable information now available
  • NEW! Custom colors available at no additional charge!
  • .016” thick aluminum provides rigidity and durability
  • Adhesives specially matched to surface for maximum adhesion and/or optional holes available for mechanical fasteners
  • More than 700 sizes means no extra tooling charge
Request a Quote
Request a Sample
View Datasheet(PDF)

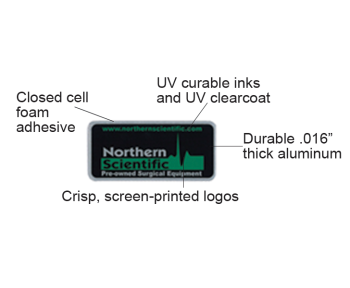

These .016” thick aluminum nameplates offer the greatest flexibility in nameplate design. SIGNATURE Printed Metal Nameplates feature CMYK color processing for precise color matches while digital inkjet printing maximizes registration accuracy and resolution allowing for clear, crisp reproduction of company logos and designs. Plus, custom colors are now available at NO ADDITIONAL CHARGE!

Metal Nameplates Common Applications

Durability, visibility and the ability to withstand harsh environments make metal nameplates a popular choice for a wide variety of different types of applications including:

  • Identification - potential applications for printed metal nameplates identification labeling applications for these products include name tags, identification plates, asset tags, medical identification tags ad pet identification tags
  • Tracking - due to the customization options for printed metal nameplates tracking labeling applications for these products include asset management, logistics and supply chain management, security and access control and inventory management
  • Branding  - printed metal nameplates can be used for such branding labeling applications as promotional items, signage, awards/trophies and retail branding
  • Safety - printed metal nameplates can be used for such safety labeling applications as hazardous materials, electrical equipment, fire safety, machine safety, and personal protective equipment
Specifications Data
Material .016” thick anodized aluminum is standard. Optional thicknesses .020”, and .032”.
Serialization NEW! Variable information now available
Label Copy The printed nameplate copy may include block type, stylized type, logos or other designs.
Colors Choose from our standard colors (red, yellow, blue, green, orange, white, purple, dark blue, black)). The use of one or two colors is standard. Additional color options available. Custom colors also available. Metalcraft color samples available upon request.
Standard Adhesive Pressure-sensitive acrylic adhesive
Sizes 2.5"x1.1875", 2"x1", 1.5"x.75", 2.5"x.75", 1.5"x.5", 3"x1", 1.75"x.5", 2",x.625", 2"x.75"
Holes Optional
Packaging Shipped in “work-out-of” cartons for convenient application. Each carton consists of one or more trays containing sequentially packed nameplates. Both cartons and trays are clearly marked to indicate serial numbers of contents. Pressure-sensitive adhesive orders are shipped with a roller, cleaner, and application instructions. Roller is recommended when applying nameplates.
Shipment 8-10 business days
Destructive Test Data
Chemical Test Summary
This rating measures readability after being exposed to chemicals listed below for a 24 hour soak. Chemical emergence tests are rated on a scale of 100 to 0:
100 = No Effect
75 = Image blurred
50 = Image scratches off
25 = Image wipes off
0 = Image destroyed
Chemical Test Data
Readability test
Test Conditions Rating
Acetone 100
Isopropyl Alcohol 100
Bathroom cleaner 80
Glass cleaner 100
Sodium hydroxide 0
Hydrochloric acid 100
Nitric acid 100
Brake fluid 100
Water 100
Temperature Test Summary
AUTOGRAPHS® are able to withstand intermittent heat exposure to 350°F.
Temperature Test Data
Read Range Test Data
Barcode Readability Test Data
Abrasion Test Summary
Nameplate survived more than 1,000 revolutions on Taber Abrader using Calibrase CS-10 wheel with 500g weight.
Abrasion Test Data
Label Adhesion Test Summary
This rating measures label adhesion after being exposed to chemicals listed below for a 2 hour soak. Label adhesion tests are rated on a scale of 100 to 0:
100 = no effect
75 = oozing adhesive
50 = label slides off
25 = label falls off
0 = label destroyed
Label Adhesion Test Data
Label Adhesion Test
Test Conditions Rating
Acetone 95
Isopropyl Alcohol 100
Bathroom Cleaner 100
Glass Cleaner 100
Sodium Hydroxide 100
Hydrochloric Acid 100
Nitric Acid 100
Brake Fluid 100
Water 100
Pull Test Data
