Destructible Barcode Windshield Tags


  • Tag designed to destruct upon removal from windshield
  • Double sided printing option available
  • UV stable construction & printing

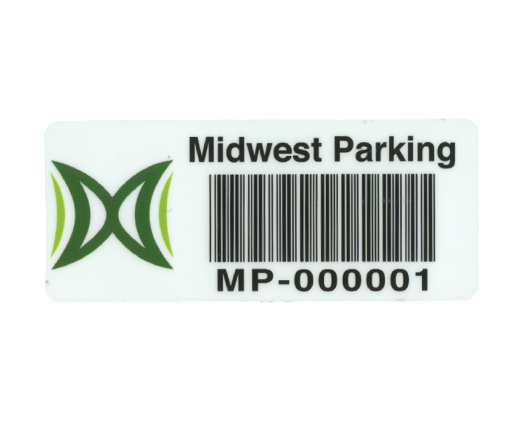

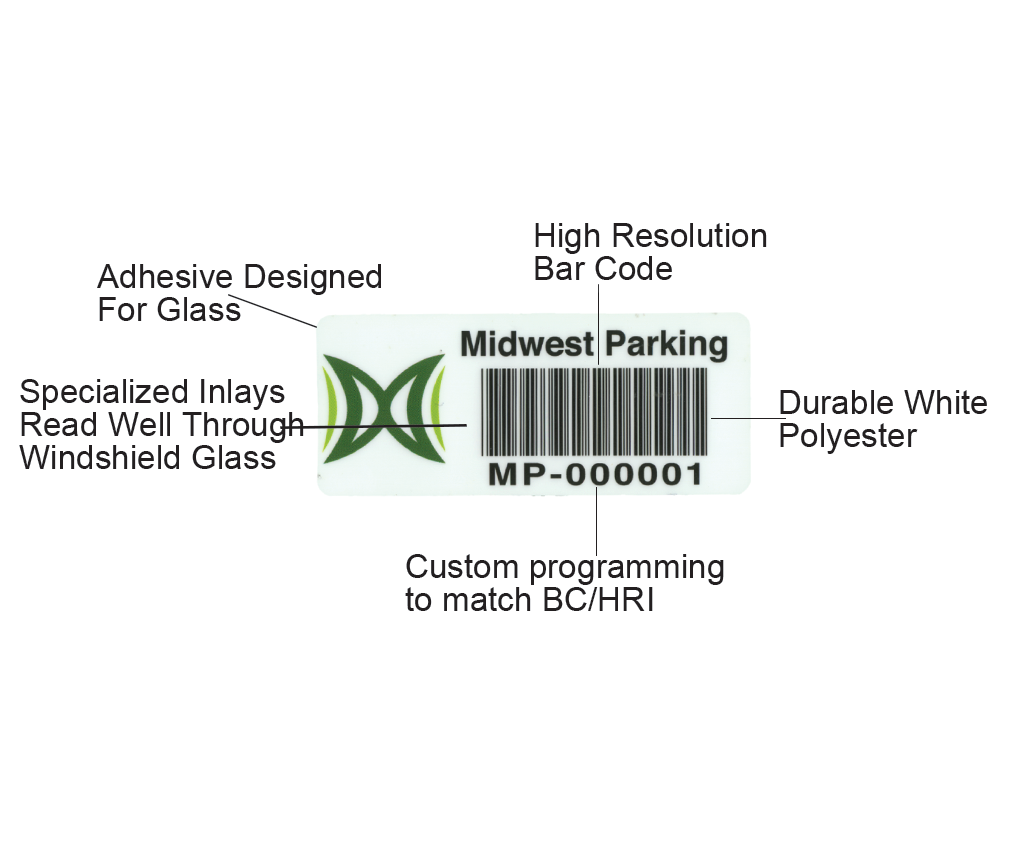

Metalcraft's Destructible Windshield Tags destruct upon removal from a windshield.

Using strategically placed slits to aid in destruction, these tags are virtually impossible to remove in one piece. The adhesive layer protects the windshield side printing, and double-sided printing is also available.

Specifications Data
MaterialDestructible material
SerializationBar code and human-readable equivalent is produced using the latest high-resolution digital technology available, which provides excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional symbologies include Code 128, 2D Data Matrix, QR and more.
Label CopyThe label copy may include block type, stylized type, logos or other designs. All copy, block type, stylized type, logos, designs and bar code are surface printed.
ColorsStandard colors include black, red, yellow, green, dark blue, purple, orange or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard AdhesiveHigh performance adhesive
Sizes4.1875" x 1.25"
PackagingProduced and shipped in roll form
Destructive Test Data
Chemical Test Summary
This rating measures label adhesion after being exposed to chemicals listed below for a 2-hour, 24-
hour and 72-hour soak.
Chemical Test Data
Length of immersionWaterGlass cleanerBathroom cleanerAlcoholAcetoneNaOHHNO3HCIBrake FluidDiesel Fuel
2 hoursno effectno effectno effectno effectVery slight delaminationno effectno effectno effectno effectno effect
24 hoursno effectno effectno effectAdhesive slightly softenened at edgesDelaminatedno effectno effectno effectno effectno effect
72 hoursno effectno effectno effectPartially delaminatedDelaminatedno effectno effectno effectno effectPartially delaminated
Temperature Test Summary
Tag performs in temperature range of -40°F to 185°F. Note: Tag performance is limited to performance
of inlay.
Temperature Test Data
Read Range Test Data
Barcode Readability Test Data
Abrasion Test Data
Label Adhesion Test Data
Pull Test Data
