Stylemark Polycarbonate Barcode Labels

Features

Flexible polycarbonate with a unique texture and non-reflective finish
Ideal for highly abrasive environments
Roll format standard
Digital printing process provides for greater print capability with detailed logos or special designs
Subsurface printing protects label from caustics/acids

Request a Quote

Request a Sample

View Datasheet(PDF)

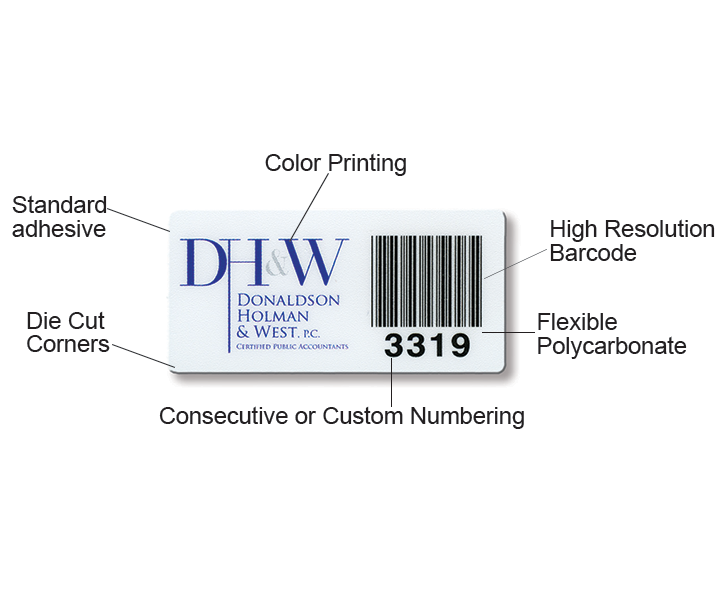

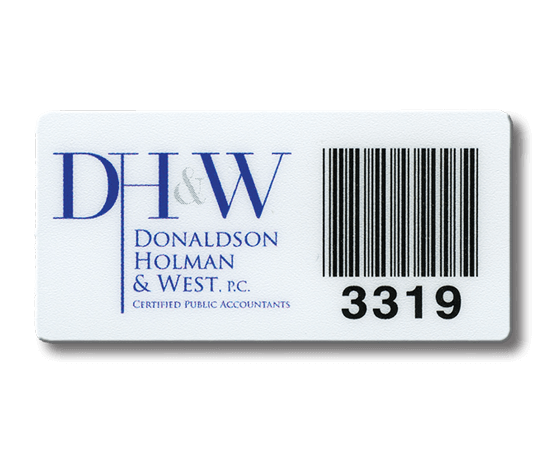

Metalcraft’s Premium StyleMark Labels use a flexible polycarbonate material with a textured, non-reflective finish.

Premium StyleMark Labels look great and work even better. The subsurface printing process used to produce these labels combined with the polycarbonate material makes these labels extremely resistant to abrasion. Subsurface printing also protects the label from caustics/acids while the specially designed adhesive provides adherence to plastic surfaces and can withstand temperatures up to 250°F short-term.

The durable, yet attractive nature of Premium StyleMark Labels makes them the ideal option for Original Equipment Manufacturers who need a label that will withstand tougher environments and still be able to proudly display a company logo. Our digital printing process combined with unlimited color choices, including four-color process, show off even the most detailed logos, type and artwork.

Metalcraft’s 48-hour DASH Label Program

Need a quicker turnaround time for your labels? Metalcraft’s 48-house DASH Label Program provides a flat-fee rush service that offers a ide variety of polyester and polymer products to fill any application need. Customize any labels with a variety of options and sizes including styles, logos, or text. Once the order is placed, we will have your labels dashed into your hands within 48-hours, guaranteed.

D ata – provide us with your serialized information or data for inclusion at no extra cost.
A ssortment – choose from a wide variety of label options
S tyle – barcodes, logos, multi-color designs and human readable texts are welcome, customize your tag as you like
H ustle – our team will get your order out the door in 48-hours, guaranteed*

*Some restrictions do apply, talk to a Metalcraft representative for details

Potential Applications for Premium Stylemark Polycarbonate Barcode Labels

Asset Tracking – the barcode and human readable ID number on Premium StyleMark Labels can be used to track information about the asset the label is adhered to, i.e., laptops, furniture, containers, pallets, equipment and more.

For more information check out our case studies, Head of the Class or Tracking Traveling IT.

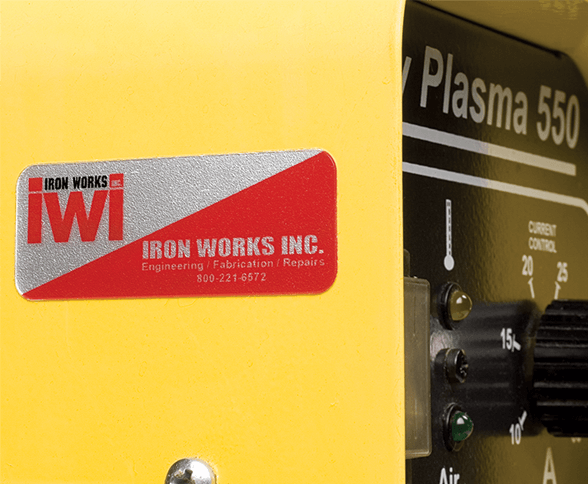

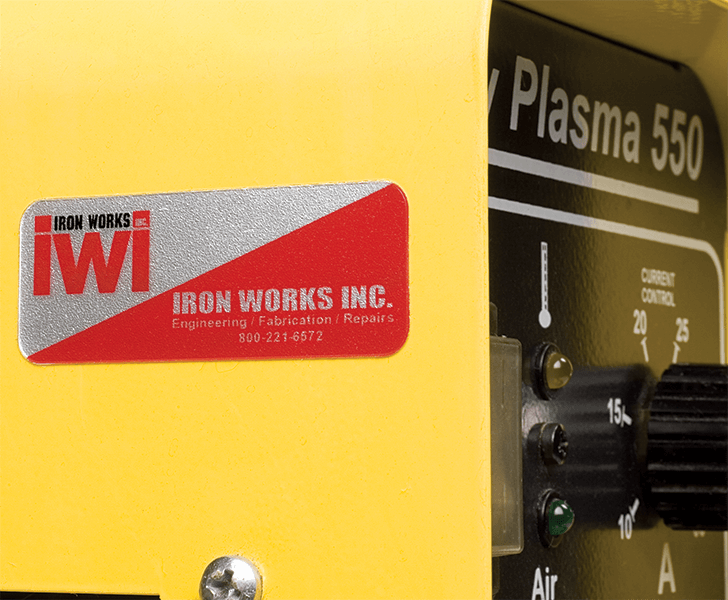

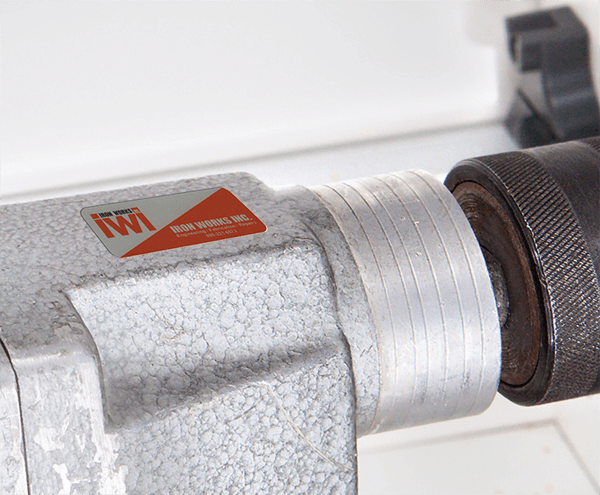

OEM Product Identification – the barcode and/or product identification number on Premium StyleMark Labels can be used for tracking purposes such as warranty and service information and typically contain one or more of the following: model number, serial number, or part number. Customers use the identification plate on products they produce and sell.

Work-in-Process – the barcode and/or identification number on Premium StyleMark Labels can identify a “batch” OR “lot” of product or just simply identify each product as it travels through the production process.

Specifications Data

Stylemark product information
Material	.007" thick UV resistant polycarbonate with non-reflective finish
Bar Code & Serialization	Barcode and human-readable equivalent is digitally printed – providing excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional linear and 2D symbologies available. Although this product is primarily marketed as a bar code product, we can produce it with human-readable numbers only or unserialized.
Label Copy	The label copy may include block type, stylized type, logos or other designs
Colors	Standard colors include black, red, yellow, green, dark blue, orange, purple or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard Adhesive	High performance adhesive particularly suited for a wide range of polyolefin and other low-surface energy materials (powderpaints, etc.).
Sizes	1.5" x .75"; 2" x 1"; 2" x .75"
Packaging	Shipped on convenient rolls with scrap matrix removed for ease of removal. Cartons are clearly marked to indicate serial numbers of labels.
Shipment	11 business days

Destructive Test Data

Chemical Test Summary

Labels were applied to a clean glass substrate and submerged in the following chemicals for 6 hours. A 180 degree peel test was performed on each label to measure peel strength and a percentage peel strength change was calculated based on a sample left in standard room temperature dry conditions.

Chemical Test Data

Chemical resistance of adhesive
	Water	Glass cleaner	Bathroom cleaner	Isopropyl alcohol	Acetone	NaOH pH 12	HN03 p 12	HCI pH 12	Brake Fluid	Diesel Fuel
Peel Strength (control	9.1	9.1	9.1	9.1	9.1	9.1	9.1	9.1	9.1	9.1

Temperature Test Summary

Labels were applied to a clean glass substrate and heated to the temperatures listed below for 1 hour. Peel tests were performed to compare change in adhesive strength and bar codes were graded before and after testing to measure image degradation severity.

Temperature Test Data

Adhesive strength change after heat exposure
	104° F/40° C for 1 hour	212° F/100° C	302° F/150° C for 1 hour	392° F/200° C for 1 hour
Peel strength (control)	9.1	9.1	9.1	9.1
Actual Peel strength (lb/in)	8.6	7.4	6.9	4.6

Read Range Test Data

Barcode Readability Test Data

Bar code grade loss after heat exposure
104° F/40° C for 1 hour	212° F/100° C for 1 hour	302° F/150° C for 1 hour	392° F/200° C for 1 hour
0	0	No read	No read

Abrasion Test Summary

Labels survived more than 10,000 revolutions on Taber Abrader using Calibrase H18 wheel with 1000g weight and remained readable with a bar code reader.

Abrasion Test Data

Label Adhesion Test Data

Pull Test Data
