EU Universal RFID Asset Tag

Features

  • Unique inlay design obtains excellent read range regardless of surface – metal, plastic, even wood.
  • Lowest profile in its class makes label unobtrusive
  • Digital printing process provides for greater print capability with detailed logos or special designs
  • Excellent read range in European frequency

The closest thing you will find to a one-size-fits-all” RFID solution! The European Universal RFID Asset Tag is a surface-independent tag that uses a unique inlay design and passive RFID technology to obtain excellent read ranges regardless of the surface – metal, plastic, even wood allowing you to only use only one RFID tag for your asset tracking application.

The European Universal RFID Asset Tag features an inlay design that offers the lowest profile of any tags in its class – solving a common issue many customers have with other metal mount RFID tags where a thick standoff creates an obtrusive nuisance for the user.

This unique inlay adheres to a subsurface printed label constructed of durable, yet flexible polyester. This process protects the copy, logo and/or barcode against moderate solvents and caustics/acids while our four-color processing capabilities allow you to promote your company with a label that shows off your company name or logo. Our digital printing process ensures even the most detailed logos will look crisp and clean.


Potential Applications For EU Universal RFID Asset Tags

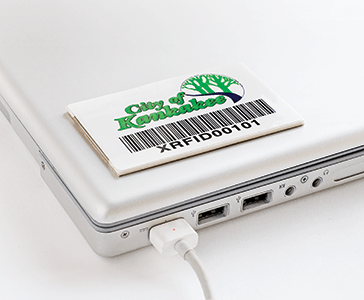

Asset Tracking the barcode and human readable ID number on the European Universal RFID Asset Tag can be used to track information about the metal asset the RFID tag is adhered to, i.e., laptops, furniture, containers, equipment and more.

Work-in-Process the barcode and/or identification number on the European Universal RFID Asset Tag can identify a “batch” OR “lot” of product or just simply identify each product as it travels through the production process.

To learn more, check out our case study, Universal Healthcare.



Specifications Data
Material .05mm thick polyester label adhered to proprietary inlay wrapped around 1.59mm closed cell foam. Total product thickness is 2.16mm.
Serialization Bar code and humanreadable equivalent is produced using the latest highresolution digital technology available, which provides excellent clarity and easy scanning. Code 39 is the standard symbology. The bar code and human readable can be programmed into the RFID inlay as long as the information is in decimal or hexadecimal format. The programmed information can be locked, which prevents the RFID inlay from being rewritten. Metalcraft can encode up to 24 characters into the RFID inlay. If desired, Metalcraft can encode information that differs from the bar code and human readable.
Label Copy The label copy may include block type, stylized type, logos or other designs. All copy, block type, stylized type, logos, designs, and bar code are subsurface printed. This unique process provides excellent resistance to solvents, caustics, acids and moderate abrasion.
Colors Standard colors include black, red, yellow, green and blue. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard Adhesive High performance adhesive
Frequency Range 865 - 868 MHZ
Sizes 3.125" x 1.375"
Packaging Produced and shipped in roll form.
Chemical Test Summary
Tags constantly soaked in the solutions indicated. In all cases, after 3 weeks soaking in these chemicals, all the tags and labels responded properly when interrogated with a handheld RFID reader, and all the bar codes except those soaked in acetone were readable with a standard bar code reader.
Chemical Test Data
Length of Immersion Water Glass Cleaner Bathroom Cleaner pH 10.0 Isop. alcohol 99% Acetone 100% NaOH pH 12.0 HNO3 pH 12.0 HCI pH 1.0 Brake Fluid
2 hours no effect no effect no effect no effect no effect no effect no effect no effect no effect
24 hours no effect no effect no effect no effect When pulled, tags came apart no effect no effect no effect no effect
1 week no effect no effect no effect P.S. adhesive softened When pulled, tags came apart When pulled, tags came apart no effect no effect no effect
3 weeks no effect no effect no effect When pulled, tags came apart When pulled, tags came apart When pulled, tags came apart no effect no effect no effect
Temperature Test Summary
Heat Testing: Product withstood temperatures up to 115°C (240°F) for short term (10 minute) periods. The will withstand temperatures up to 71°C (160°F) for extended periods (tested for six hours with no degradation). The tests demonstrated that when the transponder was not readable at temperatures above 85°C (185°F), but resumed function when temperatures were once again reduced below 85°C (185°F).
Cold Testing: Tags were tested outdoors at -18°C (0°F) and were readable, but read distance was reduced to half of the read distance observed at 15°C (60°F).
Read Range Test Summary
Anechoic Chamber Theoretic Read Distance (In Meters)
Read Range Test Data
Metal Plastic Cardboard Wood Glass
8.5 M 3.2 M 2.7 M 4.4 M 8.8 M
