Universal On Site Printable Mini RFID Tag

Features

  • Smaller footprint and lower profile while still achieving excellent read range sets this product apart from others
  • Patented inlay design obtains excellent read ranges regardless of surface–metal, plastic, even wood
  • Designed for easy setup for printing and RFID encoding
  • Thermal transfer printer receptive
  • Available for Next Day Delivery
  • Roll of 500 tags is 52 ft.

The only thing “mini” about this tag is its size! With a smaller footprint and lower profile, the Onsite Printable Universal Mini RFID Tag easily fits where other tags may be too large and obtrusive and still gives incredible read ranges compared to other tags in its class. Developed the same as our Universal Mini RFID Tag – but now you can reap the benefits of onsite printing.

The Onsite Printable Universal Mini RFID Tag is a surface-independent tag that uses a patented inlay design and passive RFID technology to obtain excellent read ranges regardless of the surface – metal, plastic, even wood. Along with the Universal Mini RFID Tag, the Universal RFID Hard Tag, Universal Micro RFID Tag and the Universal MC RFID Tag, these products make up a revolutionary product line that allows you to use only one RFID tag for your asset tracking application.

This unique inlay adheres to a thermal transfer printing receptive substrate constructed from a variety of durable materials.


Potential Applications for Onsite Printable Universal Mini RFID Tags

Asset Tracking – the barcode and human readable ID number on Onsite Printable Universal Mini RFID Tag can be used to track information about the metal asset the RFID tag is adhered to, i.e., laptops, furniture, containers, containers, equipment and more.

Work-in-Process – the barcode and/or identification number on Onsite Printable Universal Mini RFID Tag can identify a “batch” OR “lot” of product or just simply identify each product as it travels through the production process.

Specifications Data
Material Thermal transfer printable polyester substrate
Standard Adhesive Pressure sensitive acrylic adhesive
Frequency Range Custom designed UHF inlay optimized for use between 902 - 928 MHz. ( UHF, Class I Gen 2 )
Sizes 2.75" x .75"

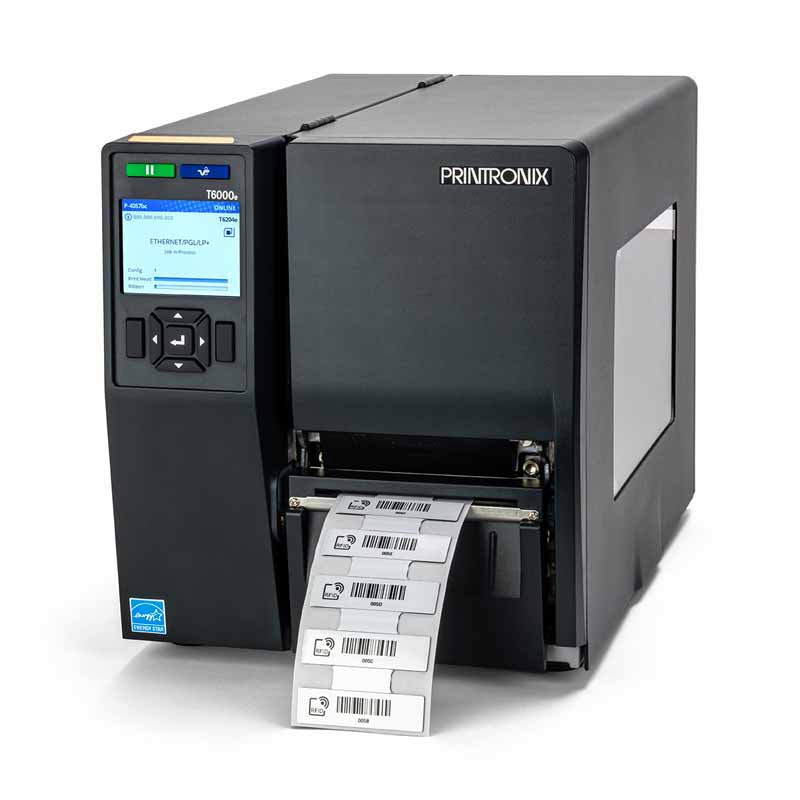

Packaging Shipped in convenient 500-piece rolls that load easily into industry-leading industrial thermal transfer printers.
Chemical Test Summary
The Onsite Printable Universal Mini tags were attached to a sheet of glass submerged in various chemicals for a 3 week period. Observations were made at the following intervals: 2 hours, 24 hours, 1 week, 2 weeks, and 3 weeks. A Motorola handheld RFID reader was used to test the samples.
Chemical Test Data
Length of immersion Water Glass Cleaner Bathroom Cleaner Isopropyl Alcohol 99% Acetone NaOH pH 12.0 HCI ph 1.0 Brake Fluid
2 hours no effect no effect no effect no effect no effect no effect no effect no effect
24 hours no effect no effect no effect no effect no effect no effect no effect no effect
1 week no effect no effect RFID tag read with difficulty (significantly lower hits/second) No read Tag structure weakened Tag detached no effect no effect
2 weeks no effect RFID tag read with difficulty (significantly lower hits/second) RFID tag read with difficulty (significantly lower hits/second) no read no read tag detached no read no effect
3 weeks tag peeled easily tag peeled easily no read; tag peeled easily no read; tag peeled easily no read tag detached no read; tag peeled easily no effect
Temperature Test Summary
High-temperature resistance test - These tags were attached to a sheet of glass at raised temperatures for 10 minutes. Tags were then removed from the oven and tested for readability immediately.
Low-temperature resistance test - The Onsite Printable Universal Mini tags were attached to a sheet of glass at low temperatures outdoors. Tags were then checked for readability with a Motorola handheld RFID reader. Tags survived and were readable for 19 hours in Iowa winter conditions with temperatures between -21 to -26°F with no signs of failure.
Temperature Test Data
Temperature RFID read test (immediately out of oven) Appearance of tags
125°F Reads well No change
135°F Reads well No change
145°F Reads well No change
165°F Reads well Slight curling at edge
185° Reads well Slight curling at edge
205°F Reads well Slight curling at edge
225° Reads well Severe curling at edge - tag discolored
250° Test failed Tag destroyed
Read Range Test Summary
In many cases the tags read intermittently for longer distances than those indicated, however, the results reported below were for continuously responding reads.
Read Range Test Data
Sample Metal Plastic Cardboard Wood Glass
Average 13.47 feet 6.8 feet 6 feet 9.67 feet 13.33 feet
