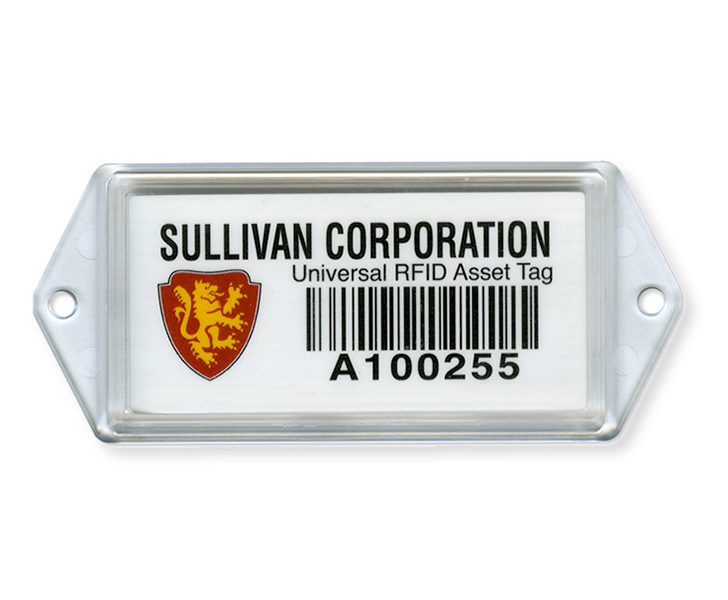

Universal RFID Hard Tag

Features

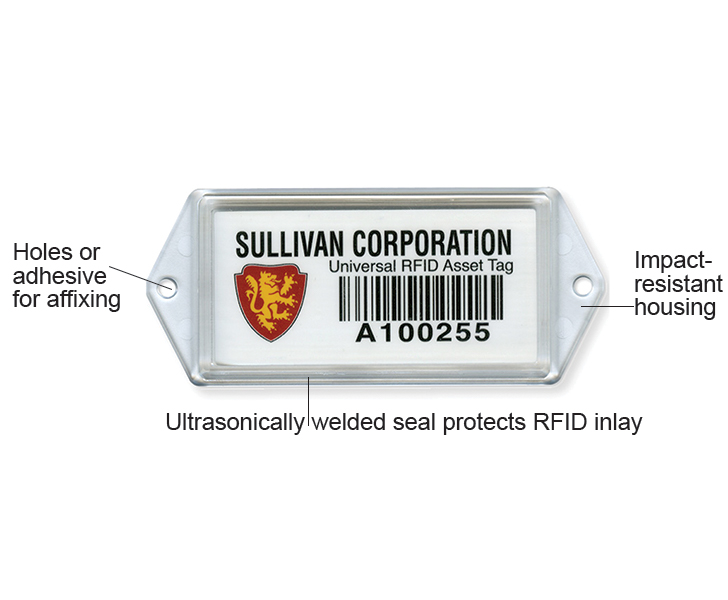

  • Patented inlay design obtains excellent read range regardless of surface – metal, plastic, even wood
  • Impact-resistant housing protects RFID inlay from harmful UV rays
  • Ultrasonically welded seal protects RFID inlay from caustics/acids
  • Affixing methods include mechanical fasteners (standard) and/or adhesive (optional)
  • Compatible with RFID Tracking Software

An RFID tag that truly lives up to its name. The Universal RFID Hard Tag features surface-independent tags with a patented inlay design used to obtain excellent read ranges regardless of the surface – metal, plastic, even wood. Along with the Universal RFID Asset Tag, the Universal Mini RFID Tag, Universal Micro RFID Tag and the Universal MC RFID Tag, these products make up a revolutionary product line that allows you to use only one RFID tag for your asset tracking application.

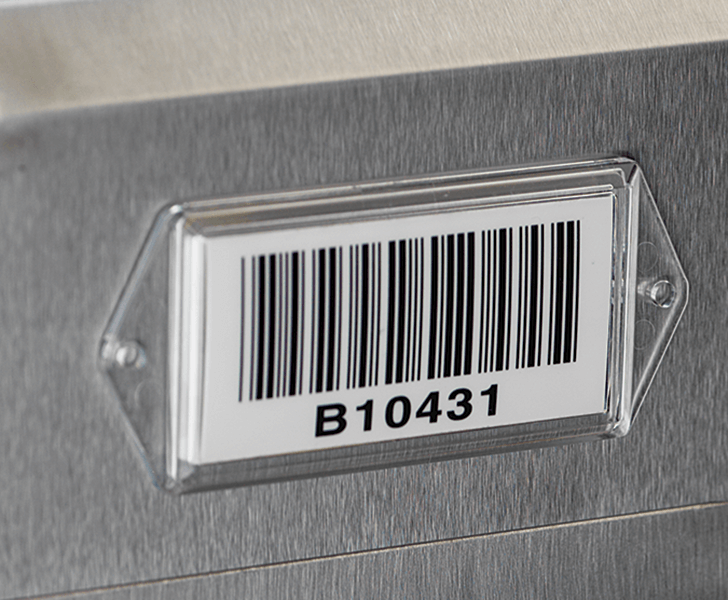

The Universal RFID Hard Tag features impact-resistant housing combined with an ultrasonically welded seal that protects the subsurface printed label and RFID inlay from harsh environments including harmful UV rays. This durable product also withstands heavy impact and will read after resurfacing from submersion in over 20 ft of water. The housing comes standard with two holes for mechanical fasteners; however, permanent, pressure-sensitive adhesive is also available as an optional affixing method.

Unlike other RFID hard tags on the market, the Universal RFID Hard Tag’s clear housing allows customers to see the customized label inside. Our four-color processing capabilities allow you to promote your company with a label that shows off your company name or logo. Our digital printing process ensures even the most detailed logo will look crisp and clean.


Potential Applications for Universal RFID Hard Tags

Asset Tracking – the barcode and human readable ID number on Universal RFID Hard Tag can be used to track information about the metal asset the RFID tag is adhered to, i.e., laptops, furniture, containers, equipment and more.

Work-in-Process – the barcode and/or identification number on Universal RFID Hard Tag can identify a “batch” OR “lot” of product or just simply identify each product as it travels through the production process.

Specifications Data
Universal hard tag product information
Material.002" thick polyester; .20" total product thickness
SerializationBarcode and human-readable equivalent is digitally printed – providing excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional linear and 2D symbologies available. Although this product is primarily marketed as a bar code product, we can produce it with human-readable numbers only or unserialized.
Label CopyThe label copy may include block type, stylized type, logos or other designs
ColorsStandard colors include black, red, yellow, green, dark blue, orange, purple or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard AdhesiveHigh performance adhesive
Frequency RangeCustom designed UHF inlay uses Alien Higgs 3 chip optimized for use at 915 MHz. (UHF, Class I Gen 2)
Sizes4.125" x 1.75"
PackagingShipped in “work-out-of” cartons for convenient application.
Destructive Test Data
Chemical Test Summary
In all cases, after 3 weeks soaking in these chemicals, all the tags and labels responded properly when interrogated with a handheld RFID reader, and all the bar codes except those soaked in acetone were readable with a standard bar code reader. NOTE: Samples tested with adhesive.
Chemical Test Data
Length of immersionWaterGlass CleanerBathroom Cleaner pH 10.0Isop. alcohol 99%Acetone 1005NaOH Ph 12.0HCI pH 1.0Brake fluid
2 hoursno effectno effectno effectno effectSurface of housing slightly cloudyno effectno effectno effect
24 hoursno effectno effectno effectno effectPlastic housing softened, but RFID tag still readableno effectno effectno effect
1 weekno effectno effectno effectP.S. adhesive softenedPlastic housing brittle, opaque, but RFID tags still readableno effectno effectno effect
3 weeksno effectno effectno effectP.S. adhesive softenedPlastic housing softened, but RFID tag still readableno effectno effectno effect
Temperature Test Summary
Heat Testing - Product withstood temperatures up to 240°F (115°C) for short term (10 minute) periods. They will withstand temperatures up to 160°F (71°C) for extended periods (tested for six hours with no degradation). The tests demonstrated that when the transponder was not readable at temperatures above 185°F (85°C), but resumed function when temperatures were once again reduced below 185°F (85°C).
Cold Testing - Tags were tested outdoors at 0°F and were readable, but read distance was reduced to half of the read distance observed at 60°F (15°C).
Temperature Test Data
Read Range Test Summary
In many cases the tags read intermittently for longer distances than those indicated, however, the results reported below were for continuously responding reads.
Read Range Test Data
Device usedTest results (all at 30 dBm)
Handheld convergence CS-101MetalPlasticCardboardWood
Universal RFID Hard Tag10 feet5 feet5 feet5 feet
Barcode Readability Test Data
Abrasion Test Data
Label Adhesion Test Data
Pull Test Data
