Foil IUID Labels
Features
- .003" or .005" thick matte anodized aluminum is standard
- All barcodes are photo imaged with a human-readable equivalent. Guaranteed no skips in sequence
- Specially matched adhesives ensure maximum adhesion to oil-free flat or curved surfaces
- Qualifies for Photo Anodized 5 Point Promise Guarantee
- Description
- Specifications
- Testing Information
- Chemical Testing

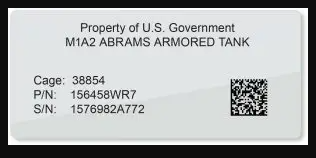

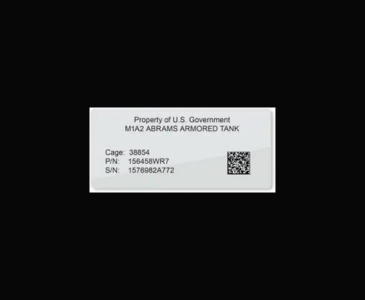

Our Photo Anodized Foil IUID Labels easily conform to curved surfaces while specially matched adhesives ensure maximum adhesion. Photo imaging process provides maximum clarity and detail of the barcode and IUID details which are then sealed within the anodic layer of the aluminum, ensuring the IUID mark will last the service lifetime of the item being identified. Ask about our Photo Anodized 5 Point Promise! The .003″ thick anodized foil IUID labels easily conform to curved surfaces while specially matched adhesives ensure maximum adhesion. Photo imaging provides excellent resistance to UV and sunlight exposure.
| Material | .003" thick matte anodized aluminum is standard. .005" thick matte anodized aluminum is optional |
| Serialization | All alphanumeric barcodes are photo imaged with a human-readable equivalent. Guaranteed no skips in sequence. |
| Label Copy | The label copy may include block type, stylized type, logos or other designs. All copy, block type, stylized type, logos, designs and barcodes are subsurface printed |
| Colors | Available in black only |
| Standard Adhesive | Specially matched adhesives ensure maximum adhesion |
| Sizes | Various sizes available |
| Packaging | Shipped in strips with packages clearly marked to indicate serial numbers of contents. Shipped with a roller, cleaner, and application instructions |
| Shipment | 5 to 10 business days |
Chemical Testing Data
| Chemical | Test Conditions | Result |
|---|---|---|
| Water | no effect | |
| Salt Spray | 5% at 95 °F, 700 hours | slight dulling of image, affects overall durability |
| Ethyl Alcohol | no effect | |
| Ethyl Acetate | 24 hours | no effect |
| Ferric Chloride | 10%, 16 hours | no effect |
| Heptane | 72 hours | no effect |
| Hydrocarbon Fluid | no effect | |
| JP-4 Fuel | no effect | |
| Kerosene | no effect | |
| Methyl Ethyl Ketone | no effect | |
| Nitric Acid | 1%, 40 hours | no effect |
| Phosphoric Acid | 1%, 40 hours | no effect |
| Sodium Hydroxide | affects overall readability | |
| Sulfuric Acid | 10%, 24 hours | no effect |
| Turbine and Jet Fuel (MIL-L 5161C) | (MIL-L 5161C) | no effect |
| Tetra Sodium Phosphate | 1%, 40 hours | no effect |
| Trisodium Phosphate | no effect |
