UID Metal Nameplates
Features
- Metalphoto® material meets a wide array of commercial, government and military specifications.
- Earned more top scores than any other IUID barcode label material tested by the U.S. Navy.
- Notable certifiations include: MIL-STD- 130N, STANAG 2290, GGP-455B(3) Type I, MIL-DTL-15024F, MIL-P-19834B and A-A- 50271.
- Expertise in working with UID spec from an established company with a reputation for durable and reliable products
- Description
- Specifications
- Testing Information
- Destructive Testing
- Chemical Testing
- Abrasion Testing

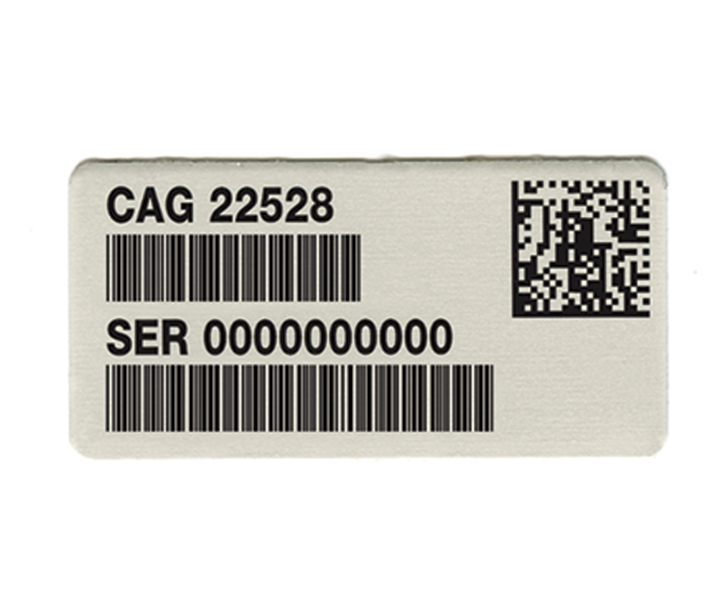

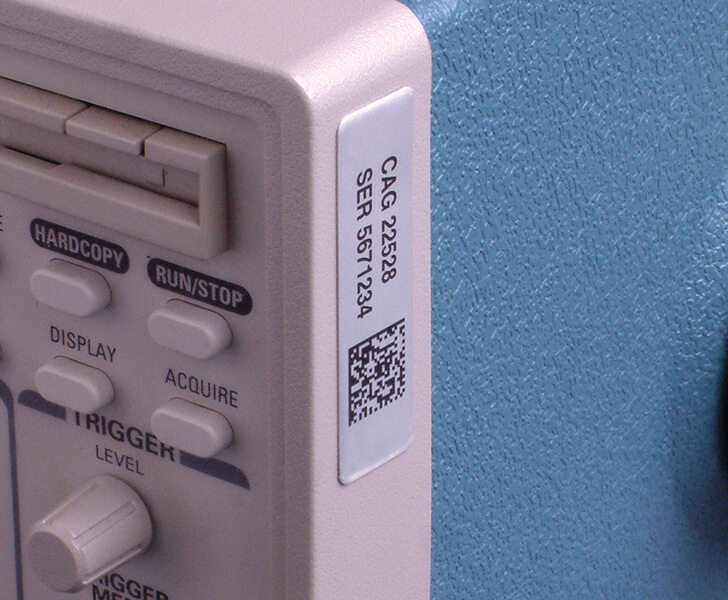

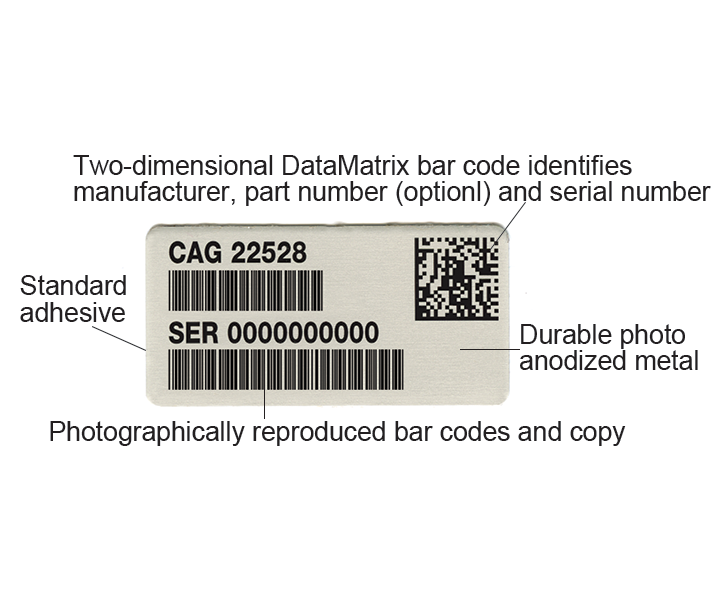

Our Photo Anodized Aluminum IUID Plates provide excellent durability and barcode readability, making them the ideal choice for a wide range of outdoor and industrial applications.Metalphoto® anodized aluminum IUID plates provide excellent durability and barcode readability, making them the ideal choice for a wide range of Item Unique Identification (IUID) applications. For flexible photo-anodized aluminum labels, black text and barcodes are reproduced on a matte surface, ensuring good printability and accurate scan reads.
Ask about our Photo Anodized 5 Point Promise!MIL-STD-130 compliant Metalphoto® labels are anodized for protection from chemicals, abrasion and high temperatures, and offer outstanding resistance to damaging UV rays. A specially matched adhesive provides more robust thickness. Optional holes are available for mechanical fasteners. Laser-marked aluminum data plates provide similar performance statistics to the photo-anodized data plates. The photo-anodized aluminum provides added durability while the specially matched adhesive ensures maximum thickness or optional holes are available for mechanical fasteners. Optional thicknesses available are .008″, .012″, .020″ & .032″.
| Material | Metal - .008" thick matte anodized aluminum is standard. Optional thicknesses include: .012", .032" and .063". Foil - .003" thick matte anodized aluminum is standard. .005" thick matte anodized aluminum is optional. |
| Serialization | All alphanumeric barcodes are photo imaged with a human-readable equivalent. Guaranteed no skips in sequence. |
| Label Copy | The label copy may include block type, stylized type, logos or other designs. All copy, block type, stylized type, logos, designs, and barcode are subsurface printed. |
| Colors | Available in black only |
| Standard Adhesive | Specially matched adhesives ensure maximum adhesion or optional holes available for mechanical fasteners (metal option only). |
| Sizes | Various sizes available |
| Holes | Optional |
| Packaging | Shipped in "work-out-of" cartons for convenient application. Each carton consists of one or more trays containing sequentially packed nameplates (nameplates may not always have a number and a quantity packaged can vary with metal thickness). Both cartons and trays are clearly marked to indicate serial numbers of contents. Pressure-sensitive adhesive orders are shipped with a roller, cleaner, and application instructions. Roller is recommended when applying nameplates. |
| Shipment | 7 business days |
| Tag Certifications | Notable certifiations include: MIL-STD- 130N, STANAG 2290, GGP-455B(3) Type I, MIL-DTL-15024F, MIL-P-19834B and A-A- 50271. |
Destructive Testing Summary
A label with an intensified image was tested in a weatherometer, 20 years equivalent; reduced overall readability after these thresholds
Chemical Testing Data
| Chemical | Condition | Result |
|---|---|---|
| Water/humidity | no effect | |
| Salt spray | 5% at 95 °F, 700 hours | slight dulling of image; affects overall durability |
| Ammonium hydroxide | 2 hours at 1% and 5% | no effect |
| Ethyl alcohol | no effect | |
| Ethyl acetate | 24 hours | no effect |
| Ferric chloride | 10%, 16 hours | no effect |
| Heptane | 72 hours | no effect |
| Hydrocarbon fluid | no ffect | |
| JP-4 fuel | no effect | |
| Kerosene | no effect | |
| Methyl Ethyl Ketone | no effect | |
| Nitric acid | 1%, 40 hours | no effect |
| Phosphoric acid | 1%, 40 hours | no effect |
| Skydrol | no effect | |
| Sodium hydroxide | affects overall readability | |
| Sulfuric acid | 10%, 24 hours | no effect |
| Turbine and jet fuel (MIL-L 5161C) | (MIL-L 5161C) | no effect |
| Tetra sodium pyrophosphate | 1%, 40 hours | no effect |
| Trisodium phospate | no effect |
Abrasion Testing Summary
A plate with an intensified image was brushed for 7,000 cycles with stiff nylon wheel (C-17) at a 1,000 gm (16 ox.) load; reduced overall readability after these thresholds
