Metalized Polyester Barcode Labels
Features
- Now available with ColorFast™ option to extend outdoor life for colors!
- Metalized silver polyester designed to look and perform like foil
- Adhesive bonds well to plastics and metal surfaces
- Digital printing process ensures barcode readability as well as crisp, clean company logos
- Appearance of metal without the cost
- Polyester over laminate ensures long-lasting life of the tag
- EU REACH and RoHS compliant
- Minimum application temperature of +50 °F; Service temperature range of -40 °F to +302 °F
- Ideal for identification and metal product asset tracking
- IUID compliant: ISO 15415 & MIL-STD-130N
- Description
- Specifications
- Testing Information
- Chemical Resistance Data
- Cold Temperature Exposure
- Heat Tests
- Abrasion Test Summary

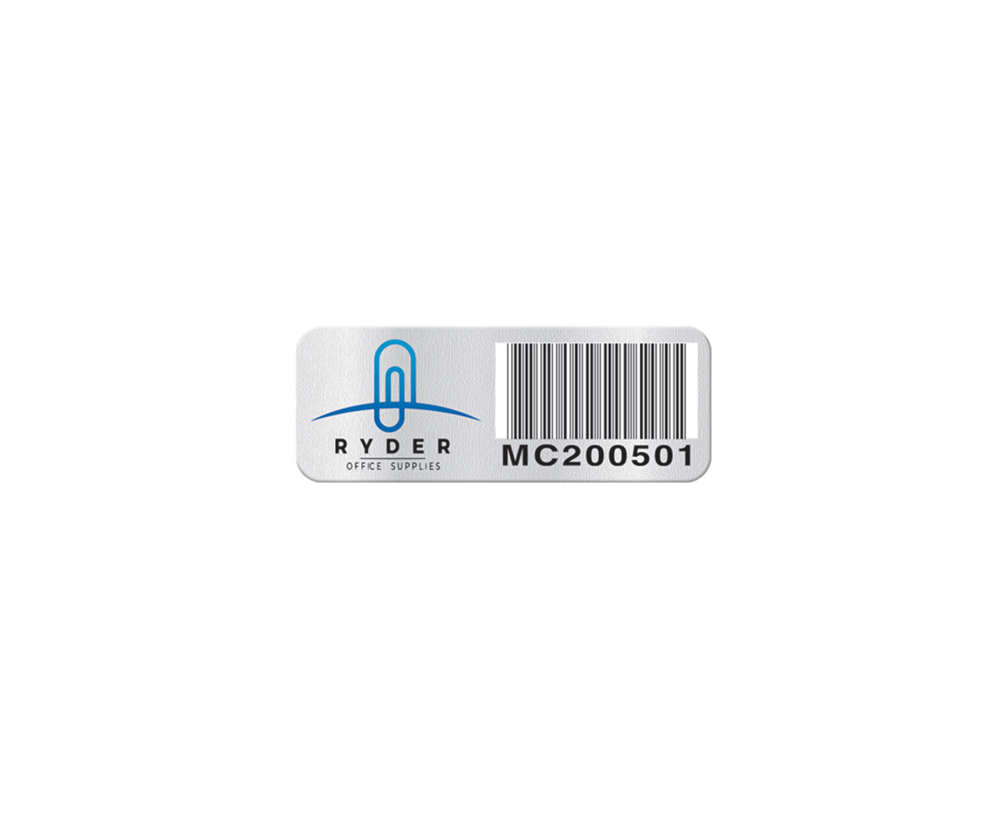

Metalized Polyester Barcode Labels have the appearance of metal without the accompanying price tag.
These silver polyester asset labels are digitally printed which allows for crisp, clean company logos as well as consistent, reliable barcode scans. The .002″ thick acrylic adhesive ensures a strong aggressive bond to most low surface energy plastic and metal applications.
Our Metalized Polyester Barcode Labels are now available with our ColorFast™ option – a Tedlar® laminate that extends exposure for up to 10 years! Contact Metalcraft at 1-800-437-5283 or 641-423-9460 for more details.
| Material | .002" thick metalized polyester |
| Serialization | Serialized/unserialized numbers and barcode with human readable numbers; white behind BC is standard |
| Label Copy | The label copy may include block type, stylized type, logos or other designs |
| Colors | Standard colors include black, red, yellow, green, dark blue, purple, orange or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the barcode scanner, all barcodes are black. |
| Standard Adhesive | High performance adhesive, particularly suited for a wide range of polyolefin and other low-surface energy materials (powderpaints, etc.) |
| Sizes | 2" x 1"; 2" x .625"; 1.25" x .5"; 1.5" x .75"; 2" x .75"; 1.75" x .5" |
| Packaging | Shipped on convenient rolls with scrap matrix removed for ease of removal. Cartons are clearly marked to indicate serial numbers of labels |
| Shipment | 10 business days |
| Tag Certifications | IUID compliant: ISO 15415 & MIL-STD-130N |
Chemical Resistance Data Summary
Samples were immersed in chemicals noted below in room temperature conditions with checks for defects after 2, 24 and 48 hours. Standard Tag: MC78 2 mil. adhesive and 2 mil. overlaminate, Economy: MC20 adhesive and a 1 mil. PET overlaminate. Key: NE - No Effect AO - Adhesive Ooze TD - Tag Delaminated ER - Printed Image Eroded/Dissolved PE - Print Erosion Under Topcoat
Chemical Resistance Data Data
| Chemical Test Data | Water | Salt Water | Bathroom Cleaner | Glass Cleaner | Isopropanol | Brake Fluid | Acetone | Diesel Fuel | Nitric Acid | Hydrochloric Acid | Sodium Hydroxide |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 Hours (Standard) | NE | NE | NE | NE | NE | NE | AO | AO | NE | NE | NE |
| 2 Hours (Economy) | NE | NE | NE | NE | NE | NE | AO | AO | NE | NE | NE |
| 24 Hours (Standard) | NE | NE | NE | NE | NE | AO | AO | AO | NE | NE | NE |
| 24 Hours (Economy) | NE | NE | NE | NE | NE | NE | AO | AO | NE | NE | NE |
| 48 Hours (Standard) | NE | NE | NE | NE | NE | NE | TD, ER | AO | NE | NE | NE |
| 48 Hours (Economy) | NE | NE | NE | PE | NE | NE | TD, ER | AO | NE | NE | PE |
Cold Temperature Exposure Summary
Samples applied to glass panels at ambient room temperature conditions, sit for 72 hours then place in a freezer set to -40 °F for 24 hours. Samples checked for printed image adhesion with fingernail scratch test. Key: NE - No Effect
Cold Temperature Exposure Data
| Sample | Results |
|---|---|
| Economy | NE |
| Standard | NE |
Heat Tests Summary
200 °F - 400 °F - Samples applied to glass panels and the same sample was exposed to each temperature noted below for 1 hour.
Heat Tests Data
| Sample | 200 °F | 250 °F | 300 °F | 350 °F | 400 °F | 500 °F |
|---|---|---|---|---|---|---|
| Economy | NE | NE | NE | NE | TD, SS | TD, SS |
| Standard | NE | NE | NE | NE | TD, SS | TM |
Abrasion Test Summary Data
| Labels survived 6,000 revolutions on Taber 5130 Abrader using CS-10 wheels with a 500 gram load per wheel (1,000 gram total). |
