Teflon® Coated Nameplates

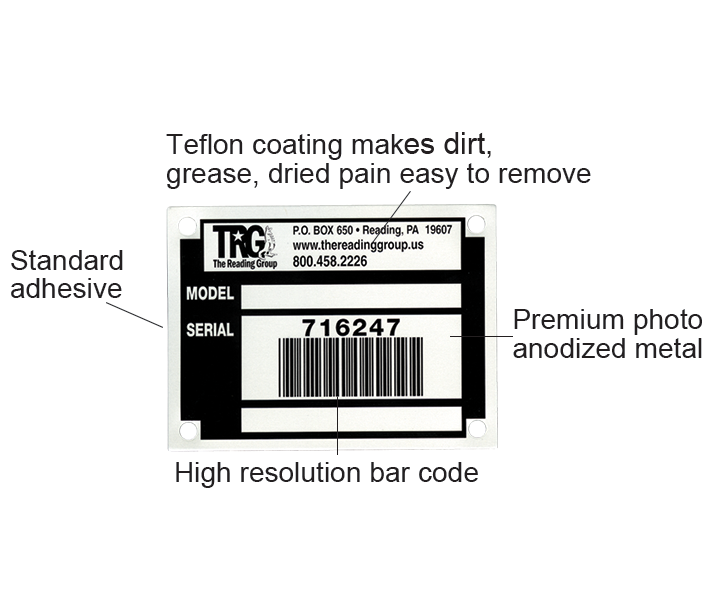

Features

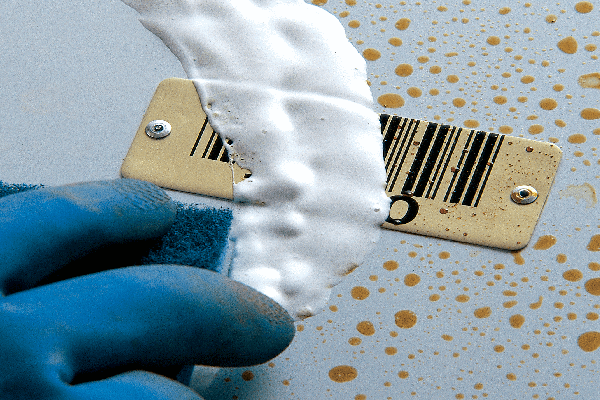

- Dirt, grease or dried paint is easily removed.
- Teflon® coating also provides protection against long-term exposure to weather, extreme heat or cold, UV rays and fluctuations in temperature
- Photographically reproduced black copy, logos and barcodes ensure accurate and reliable reads
- Adhesives specially matched to surface for maximum adhesion or optional holes available for mechanical fasteners
- Description
- Specifications
- Testing Information
- Chemical Testing
- Barcode Readability

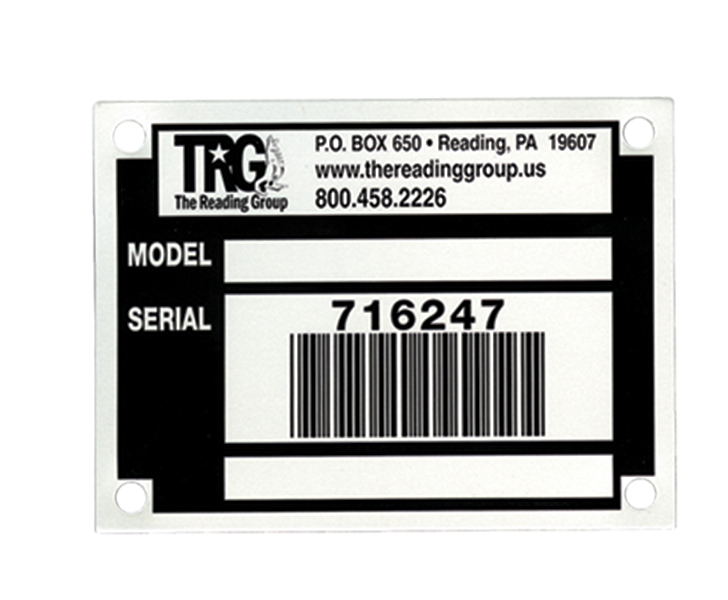

Teflon® Coated Nameplates are easy to clean, acid-resistant and temperature-resistant up to 500 °F. Available with or without a barcode, Teflon® Coated Nameplates are ideal for customers who require permanent nameplates to stand up in extremely harsh environments. These nameplates are perfect for tracking assets, fugitive emissions and work-in-process. Their fast and accurate barcode reading makes the scanning process simple. Black copy, logos, and barcodes are photographically reproduced for maximum clarity and detail and then sealed within the anodic layer of the aluminum. The anodized aluminum combined with the Teflon coating makes these nameplates one of our most durable products.
Teflon® Coated Barcode Nameplates come with a standard adhesive that bonds extremely well to plastic or powder coated metal surfaces and bonds well to bare metal surfaces. This product is also available with optional holes for mechanical fasteners.
If you’re looking for other metal barcode tags, click here. Staying Clean With Barcode Tracking.
| Material | .012" thick anodized aluminum is standard. Optional thicknesses include .020", .032", and .063". The Teflon® coating is a fluoropolymer, which is approximately .001" to .0015" thick. |
| Serialization | All alphanumeric barcodes are photo imaged with a human-readable equivalent. Guaranteed no skips in sequence. Code 39 with 2.7 to 9.4 characters per inch (CPI) is standard. Other barcode symbologies including 128, I 2 of 5, 2D DataMatrix and QR Code. |
| Label Copy | The printed label copy may include block type, stylized type, logos, and other designs. All copy is produced photographically. |
| Colors | Available in black only |
| Standard Adhesive | Pressure-sensitive acrylic adhesive |
| Sizes | 2" x .625"; 2.5" x 0.75"; 2" x 1" |
| Holes | Optional |
| Packaging | Shipped in "work-out-of" cartons for convenient application. Each carton consists of one or more trays containing sequentially packed nameplates (nameplates may not always have a number and a quantity packaged can vary with metal thickness). Both cartons and trays are clearly marked to indicate serial numbers of contents. Pressure-sensitive adhesive orders are shipped with a roller, cleaner, and application instructions. Roller is recommended when applying nameplates. |
| Shipment | 20-25 business days |
Chemical Testing Data
| Chemical | Conditions | Result |
|---|---|---|
| Water/humidty | no effect | |
| Salt Spray | 5% at 95 °F, 700 hours | slight dulling of image, affects overall durability |
| Ethyl Alcohol | no effect | |
| Ethyl Acetate | 24 hours | no effect |
| Ferric Chloride | 10%, 16 hours | no effect |
| Heptane | 72 hours | no effect |
| Hydrocarbon Fluid | no effect | |
| JP-4 Fuel | no effect | |
| Kerosene | no effect | |
| Methyl Ethyl Ketone | no effect | |
| Nitric Acid | 1%, 40 hours | no effect |
| Phosphoric Acid | 1%, 40 hours | no effect |
| Skydrol | no effect | |
| Sodium Hydroxide | affects overall readability | |
| Sulfuric Acid | 10%, 24 hours | no effect |
| Turbine and jet fuel (MIL-L 5161C) | (MIL-L 5161C) | no effect |
| Tetra Sodium Pyrophosphate | 1%, 40 hours | no effect |
| Trisodium Phosphate | no effect |
Barcode Readability Data
| Chemical | Result |
|---|---|
| Glass Cleaner with ammonia | no effect |
| DI water | no effect |
| Isopropyl Alcohol | no effect |
| Bathroom cleaner | no effect |
| Acetone | no effect |
| Brake Fluid | no effect |
| Diesel fuel | no effect |
| Caustic soda | no effect |
| Nitric acid | no effect |
| Hydrochloric Acid | no effect |
