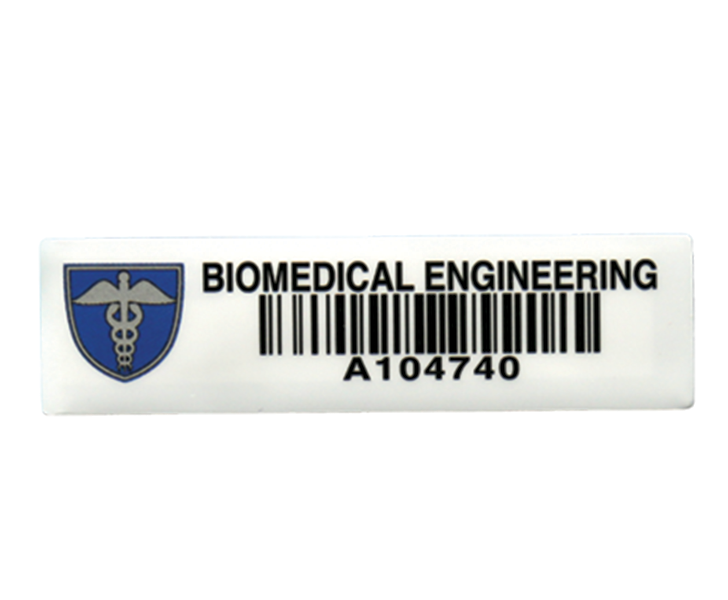

Universal Mini RFID Tag
Features
- Smaller footprint and lower profile while still achieving excellent read range sets this product apart from others
- Patented inlay design obtains excellent read ranges regardless of surface - metal, plastic and even wood

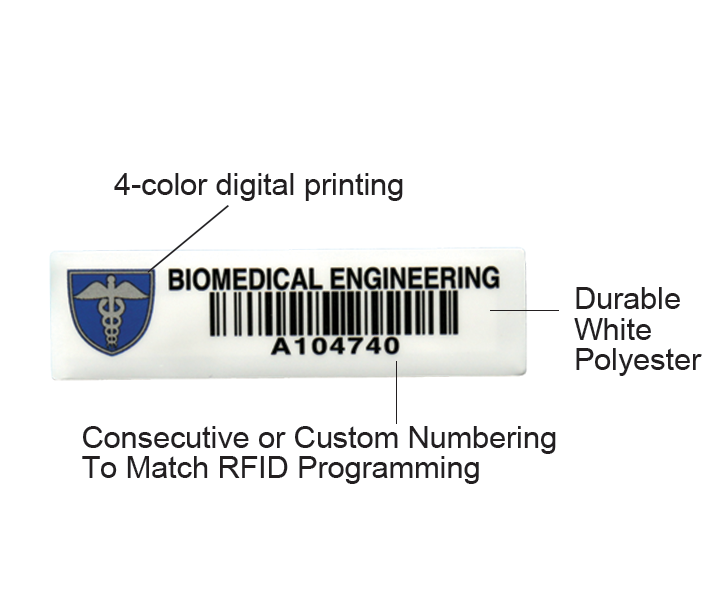

- Subsurface printing on durable polyester protects printed copy against moderate solvents and caustics/acids
- Compatible with RFID Tracking Software
- Description
- Specifications
- Testing Information
- Chemical Testing
- Temperature Testing
- Read Range Testing
If you are looking for a small RFID tag, the Universal Mini RFID Tag is the one for you! The Universal Mini RFID Tag may be small in size, but it packs a powerful punch! Its compact design and slim profile make it ideal for spaces where larger tags would be cumbersome. Despite its diminutive stature, these small RFID tags offer impressive read ranges that rival larger tags in its category. The Universal Mini RFID Tag, with its compact size and less conspicuous design, is a small RFID tag that conveniently fits in places where other tags might be too bulky and noticeable. Despite its size, it offers impressive read ranges compared to other tags of similar category.

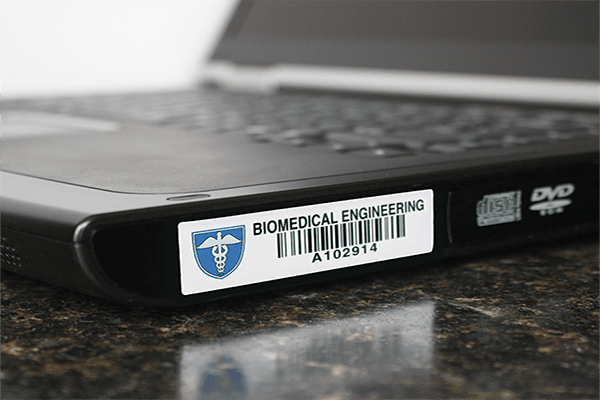

The Universal Mini RFID Tag is a smaller version of our original Universal RFID Asset Tag, designed to be more compact and discreet while still providing the same level of tracking and identification capabilities. This small RFID tag is ideal for use on smaller items or in situations where space is limited, such as on electronic devices, tools, or inventory items. Despite its smaller size, the Universal Mini RFID Tag still offers the same durability and long-lasting performance as its larger counterpart, making it a reliable solution for asset management and tracking needs. With its universal compatibility and easy integration with existing RFID systems, the Universal Mini RFID Tag is a versatile and cost-effective option for businesses looking to improve their asset tracking processes with small RFID tags. The tag can be easily applied to any surface, thanks to its patented inlay design.
The use of passive RFID technology enables the tag to achieve long read ranges, making it ideal for tracking and monitoring purposes. Whether it’s on metal, plastic or wood surfaces, this small RFID tag can provide accurate and reliable data collection. Its versatility and reliability make it a valuable tool for a wide range of industries and applications looking for small tags. The Universal Asset Tag, Universal RFID Hard Tag, Universal Micro RFID Tag, and Universal MC RFID Tag are part of a groundbreaking product line that simplifies asset tracking by allowing you to use just one tag for all your tracking needs.
What is a micro RFID tag? – A micro RFID tag is a compact version of a standard RFID tag, designed for applications where space is limited or discretion is required. Despite its small size, it contains an RFID inlay capable of wirelessly transmitting data when activated by an RFID reader.
How small can you make an RFID tag? – RFID tags can be made as small as a grain of rice, with some micro RFID tags measuring less than 1 millimeter in size. These ultra-small tags are designed for applications requiring minimal space, such as medical implants, microelectronics, or secure identification.
How much does it cost to make an RFID tag? – The cost of making an RFID tag varies based on the type, materials, and volume, typically ranging from a few cents for simple passive tags to several dollars for advanced active tags. High-volume production significantly reduces costs, making RFID tags more affordable for large-scale applications.
| Material | Inlay wrapped around 1/32" closed cell foam. Total thickness .047". |
| Serialization | Barcode and human-readable equivalent are produced using the latest high-resolution digital technology available, which provides excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 5.4 CPI (characters per inch). Optional symbology is Code 128. |
| Label Copy | The label copy may include block type, stylized type, logos or other designs |
| Colors | Standard colors include black, red, yellow, green, dark blue, orange, purple or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the barcode scanner, all barcodes are black. |
| Standard Adhesive | Pressure-sensitive acrylic adhesive |
| Frequency | Custom designed UHF inlay optimized for use between 902-928 MHz. ( UHF, Class I Gen 2 ) |
| Sizes | 2.75" x .75" |
| Packaging | Produced and shipped in roll form. |
Chemical Testing Summary
The Universal Mini tags were attached to a sheet of glass submerged in various chemicals for a 3 week period. Observations were made at the following intervals: 2 hours, 24 hours, 1 week, 2 weeks, and 3 weeks. A Motorola handheld RFID reader as well as a handheld barcode reader were used to test the samples.
Chemical Testing Data
| Length of immersion | Water | Glass Cleaner | Bathroom Cleaner | Isopropyl alcohol 99% | Acetone | NaOH pH 12.0 | HCI pH 1.0 | Brake Fluid |
|---|---|---|---|---|---|---|---|---|
| 2 hours | no effect | no effect | no effect | no effect | no effect | no effect | no effect | no effect |
| 24 hours | no effect | no effect | no effect | no effect | no effect | no effect | no effect | no effect |
| 1 week | no effect | no effect | RFID tag read with difficulty (significantly lower hits/second) | no read | tag structure weakened | tag detatched | no effect | no effect |
| 2 weeks | no effect | RFID tag reads with difficulty | RFID tag reads with difficulty | no read | tag structure weakened | tag detached | no effect | no effect |
| 3 weeks | tag peeled easily | tag peeled easily | no read; tag peeled easily | no read; tag peeled easily | no read | tag detached | no read; tag peeled easily | no effect |
Temperature Testing Summary
High-temperature resistance test - These tags were attached to a sheet of glass at raised temperatures for 10 minutes. Tags were then removed from the oven and tested for readability immediately. Low-temperature resistance test - The Universal Mini tags were attached to a sheet of glass at low temperatures outdoors. Tags were then checked for readability with a Motorola handheld RFID reader. Tags survived and were readable for 19 hours in Iowa winter conditions with temperatures between -21 to -26 °F with no signs of failure.
Temperature Testing Data
| Temperature | RFID read test | Tag appearance |
|---|---|---|
| 125 °F | reads well | no change |
| 135 °F | reads well | no change |
| 145 °F | reads well | no change |
| 165 °F | reads well | slight curling at edge |
| 185 °F | reads well | slight curling at edge |
| 205 °F | reads well | slight curling at edge |
| 225 °F | reads well | severe curling at edge - tag discolored |
| 250 °F | reads well | tag destroyed |
Read Range Testing Summary
In many cases the tags read intermittently for longer distances than those indicated, however, the results reported below were for continuously responding reads.
Read Range Testing Data
| Sample | Metal | Plastic | Cardboard | Wood | Glass |
|---|---|---|---|---|---|
| Average | 13.47 ft. | 6.8 ft. | 6 ft. | 9.67 ft. | 13.33 ft. |
