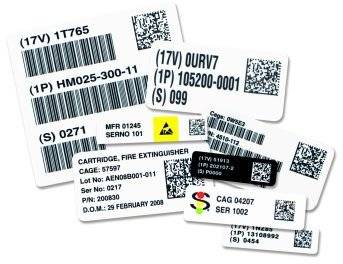

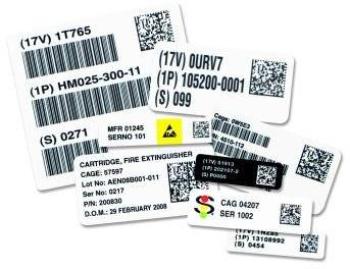

Digitally Printed UID Polyester Labels
Features
- Expertise in working with the UID spec
- Digital printing process ensures barcode readability
- Subsurface printing protects against extreme solvents, caustics, acids and moderate abrasion while eliminating need for a laminate
- Durable .003" thick polyester material easily conforms to uneven or radius surface
- .0035" thick adhesive provides excellent adhesion to low-surface energy materials
- ITAR Compliant
- Established company with a reputation for durable and reliable products
- Description
- Specifications
- Testing Information
- Chemical Testing
- Temperature Testing
Digital printing ensures bar code readability as well as crisp, clean company logos while subsurface printing protects the logos, copy and bar code against extreme solvents, caustics, acids and moderate abrasion – ensuring the mark with last the service lifetime of the item being identified.
| Material | .003" thick white or silver polyester that can withstand moderate to harsh exposure, mild to moderate abrasion, and temperatures up to 250°F for short durations. Bar Code & Serialization All alphanumeric bar codes are printed with a human-readable equivalent. Label Copy The label copy may include block type, stylized type, logos or other designs. All copy, block type, stylized type, logos, designs, and bar code are subsurface printed. This unique process provides excellent resistance to solvents, caustics, acids, and moderate abrasion. Colors Standard colors include black, red, yellow, green, dark blue, orange, purple or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black. Standard Adhesive High performance adhesive Sizes Various sizes available Packaging Produced and shipped in roll form. Strip form is optional. Cleaning solution is provided to assist in applying to a clean surface. Cartons are clearly marked to indicate serial numbers of labels. Shipment 10 business days |
| Serialization | All alphanumeric barcodes are printed with a human readable equivalent |
| Label Copy | The label copy may include block type, stylized type, logos or other designs |
| Colors | Standard colors include black, red, yellow, green, dark blue, purple, orange or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the barcode scanner, all barcodes are black |
| Standard Adhesive | High performance adhesive |
| Packaging | Produced and shipped in roll form |
| Shipment | 10 |
Chemical Testing Summary
Labels were applied to a clean glass substrate and submerged in the following chemicals for 6 hours. A 180 degree peel test was performed on each label to measure peel strength and a percentage peel strength change was calculated based on a sample left in standard room temperature dry conditions. No bar code grade loss was experienced after the chemical tests on Craftmark labels. Chemical Resistance of Adhesive
Chemical Testing Data
| Water | Glass Cleaner | Bathroom Cleaner | Isopropyl Alcohol | Acetone | NaOH | HNO3 | HCl | Brake Fluid | Diesel Fuel | |
|---|---|---|---|---|---|---|---|---|---|---|
| Peel Strength (control) | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 |
| Actual peel strength (lbs/in) | 8.8 | 9.6 | 9.2 | 8.5 | 6.3 | 8.3 | 8.2 | 8.3 | 8 | 6.7 |
Temperature Testing Summary
Labels were applied to a clean glass substrate and heated to the temperatures listed below for 1 hour. Peel tests were performed to compare change in adhesive strength and barcodes were graded before and after testing to measure image degradation severity. Adhesive Strength Change after Heat Exposure
Temperature Testing Data
| 104 °F/40 °C for 1 hour | 212 °F/100 °C for 1 hour | 302 °F/150 °C for 1 hour | 392 °F/200 °C for 1 hour | |
|---|---|---|---|---|
| Peel Strength (control) | 9.1 | 9.1 | 9.1 | 9.1 |
| Actual peel strength (lbs/in) | 8.1 | 8.1 | 8.2 | 3.4 |
