DuraDestruct RFID Tags – Plastic
Features
- Ideal for security and tamper proof RFID applications
- Deters transferability as tag is rendered useless upon removal
- Provides additional levels of security for RFID anti-theft and RFID protection systems

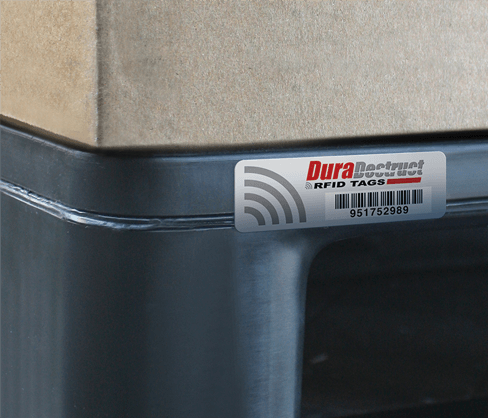

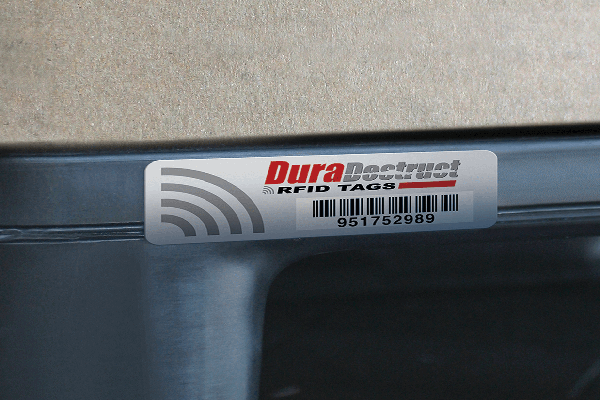

- Perfect for plastic bins, totes, tubs and crates
- Read range up to 40' on plastic
- Custom printing available
- Patented product design
- Compatible with RFID Tracking Software
- Description
- Specifications
- Testing Information
- Chemical Testing
- Temperature Testing
- Read Range Testing

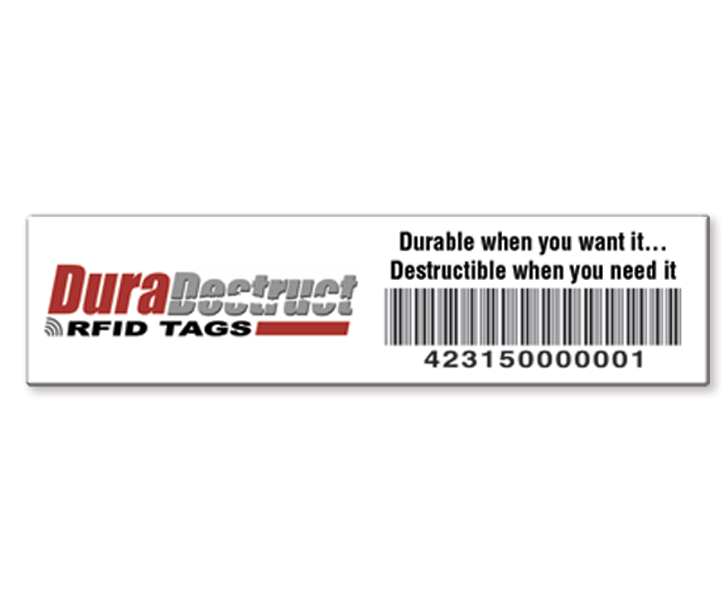

The unique design of the DuraDestruct RFID Security Tag prevents the RFID tag from being transferred and includes two stages of destructibility. If an attempt is made to detach the tag, the RFID antenna structure fractures into individual parts, reducing the tag’s read range to just a few inches. The part that remains attached will literally crumble to pieces if someone tries to pry it off the object.

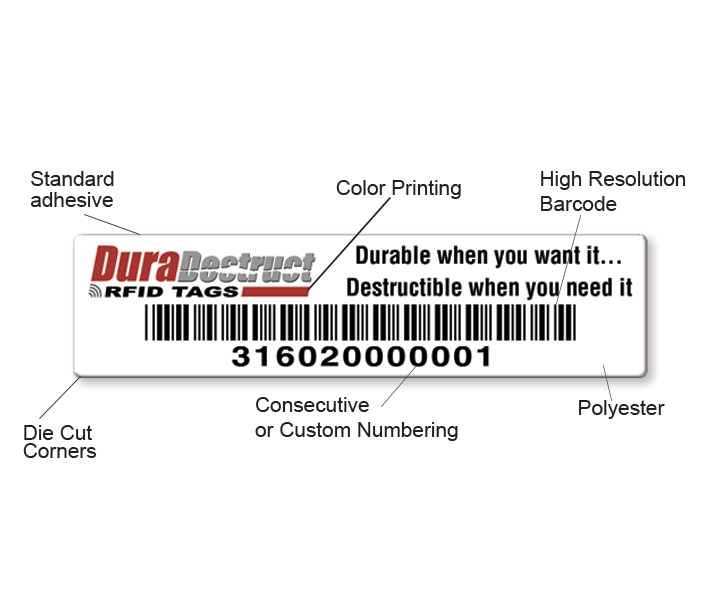

| Material | Polyester |
| Serialization | Barcode and human-readable equivalent are produced using the latest high-resolution digital technology available, which provides excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 5.4 CPI (characters per inch). Optional symbology is Code 128. |
| Label Copy | The label copy may include block type, stylized type, logos or other designs |
| Colors | Standard colors include black, red, yellow, green, dark blue, orange, purple or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all barcodes are black. |
| Standard Adhesive | Pressure-sensitive acrylic adhesive |
| Frequency | Worldwide UHF RFID Operation (840-960 MHz) |
| Sizes | 4" x 1" |
| Packaging | Produced and shipped in roll form |
Chemical Testing Summary
Samples applied to glass panels, allowed to wet out for 72 hours, immersed in chemicals below at ambient room temperature conditions. Inlays in all samples still reading after 48 hours of exposure. Key: NE = No effect; AO = adhesive ooze; PE = print erosion under laminate
Chemical Testing Data
| Water | Salt Water 5% NaCL | Bathroom Cleaner | Glass Cleaner | Isopropanol 99% | Brake Fluid | Acetone | Diesel Fuel | Ntric Acid pH 1 =/-0.01 | Hydrochloric Acid pH 1 =/- 0.01 | Sodium Hydroxide pH 12 =/-0.01 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 hours | NE | NE | NE | NE | AO | AO | AO | AO | NE | NE | NE |
| 24 hours | NE | NE | NE | NE | AO | AO | AO | AO | NE | NE | NE |
| 48 hours | NE | NE | NE | PE | AO | AO | AO | AO | NE | NE | NE |
Temperature Testing Summary
Samples applied to glass panels at ambient room temperature conditions, sit for 72 hours, then placed in freezer set to -40 °F for 24 hours. All inlays reading prior to removal from the freezer, all tags still destructible prior to removal from the freezer. Samples then exposed to each temperature noted below for 1 hour. All tags still destructible while at 200 °F. Inlays quit reading after exposure to 400 °F. Key: NE = no effect; TD = Sample materials discolored; TP = Sample print degradation; TM = Tag melted/destroyed; SS = sample shrinking; adhesive ooze at edges
Temperature Testing Data
| 200 °F | 250 °F | 300 °F | 350 °F | 400 °F | 450 °F | 500 °F |
|---|---|---|---|---|---|---|
| NE | NE | NE | SS | TD, SS | TP, TD, SS | TM |
Read Range Testing Summary
DuraDestruct Voyanic Anechoic Chamber test results
Read Range Testing Data
| Substrate | ETSI | FCC |
|---|---|---|
| Windshield Glass | 28.68 | 34.7 |
| Tempered Glass | 27 | 30.25 |
| Polypropylene | 45.98 | 40.36 |
| HDPE | 37.5 | 50.5 |
| Wood | 30.5 | 29.5 |
| Corrugated Paper | 42.5 | 47.5 |
