Understanding the Different Types of RFID Tags

What Are the Different Types of RFID Tags?

Radio Frequency Identification (RFID) is a wireless communication technology that uses radio waves to transmit data from RFID tags to readers. As RFID systems become more advanced, understanding the different types of RFID tags is essential for selecting the right solution for your specific application. Whether you’re managing inventory, tracking assets, or deploying an RFID access control system, the type of tag you choose directly impacts system performance.

There are three main types of RFID tags: active RFID tags, passive RFID tags, and semi-passive RFID tags. Each tag offers unique features depending on factors like frequency range, read distance, cost, power source, and environmental compatibility. Let’s take a closer look at how these RFID tag types function and where they work best.

What RFID tag is right for me?

Active RFID Tags

Active RFID tags contain an internal power source—typically a battery—which allows them to transmit signals independently of RFID readers. These tags periodically send signals, often including sensor data such as temperature, pressure, or humidity, and can achieve read ranges of up to 750 feet or more.

Common applications for active RFID include:

• High-value asset tracking

• Access control systems

• Vehicle identification

• Real-time inventory management

• Supply chain monitoring

Active RFID systems operate in frequency ranges such as 433 MHz and 5.6 GHz, with many using ultra high frequency (UHF) and high frequency (HF) bands. While these tags offer enhanced range and data capacity, they are more expensive (starting around $15 in bulk), require battery maintenance, and tend to be larger in size.

Passive RFID Tags

Passive RFID tags lack an internal power source. Instead, they harvest energy from the electromagnetic signal emitted by an RFID reader to power their chip and transmit data. When the reader’s signal reaches the tag, the tag responds by reflecting back its unique information.

Ideal use cases for passive RFID include:

• Retail inventory control

• Library media tracking

• Supply chain visibility

• Asset management in hospitals and warehouses

Passive tags are widely used because of their affordability (as low as $0.05), small form factor, and low maintenance. These systems operate across low frequency (LF), high frequency (HF), and ultra high frequency (UHF) ranges. Passive UHF RFID tags are especially popular for long read ranges and fast data transfer, while HF RFID tags are preferred for near-field communication (NFC) and access control.

Semi-Passive RFID Tags

Also referred to as battery-assisted passive (BAP) tags, semi-passive RFID tags include a battery that powers the chip but not the signal transmission. Like passive tags, they rely on the RFID reader to initiate communication, but the internal battery allows for better range and sensor support.

Semi-passive RFID is commonly used for:

• Monitoring temperature-sensitive shipments

• Container security

• Environmental condition tracking

With pricing that falls between passive and active tags (typically $10–$50), semi-passive tags offer a great middle ground—enhancing performance without the size and cost of fully active RFID tags.

Comparing RFID Tag Types

• Use radio frequency signals to transmit data

• Don’t require line-of-sight

• Support multiple frequency bands (LF, HF, UHF)

• Enable simultaneous reads using anti-collision protocols

• Allow integration with GPS, sensors, and cloud-based systems

What Surface is the Tag Going on?

Surface material directly impacts RFID performance and should always be evaluated before final tag selection.

Metal surfaces require on-metal RFID tags. Standard RFID inlays placed directly on metal will detune and lose performance because metal reflects radio waves. On-metal tags are specifically engineered with built-in isolation (such as a foam or spacer layer) to separate the antenna from the metal surface and maintain proper read range and reliability.

Plastics are generally more forgiving. Most standard RFID tags perform well on plastic, wood, or corrugate because these materials do not significantly interfere with radio frequency signals. However, thickness, density, and mounting method can still influence performance.

Glass and liquids can affect performance. RF signals behave differently around liquids, and certain glass applications may require specially tuned tags for optimal results. In applications involving filled containers or fluid exposure, tag selection becomes even more important to maintain consistent reads.

Evaluating surface type early ensures you select a tag designed to function in your real-world environment—not just in a lab setting. This decision works hand-in-hand with materials and encapsulation considerations.

Durability and Environment

Once surface compatibility is confirmed, environmental durability becomes the next critical factor. RFID tag performance is not just about initial read success—it’s about maintaining that performance over time.

Consider the full lifecycle of the asset:

• Heat: Will the tag be exposed to high temperatures, outdoor sun exposure, or industrial processing environments?

• Moisture: Is the application subject to washdowns, humidity, rain, or condensation?

• Chemicals: Will cleaning agents, oils, fuels, or solvents come into contact with the tag?

• Abrasion: Will the tag experience friction from handling, stacking, transport, or equipment contact?

Each of these factors affects tag lifespan. A tag that reads perfectly on day one but fails after repeated exposure creates replacement costs, downtime, and data gaps.

The goal is not to select the most advanced technology—it’s to select a construction durable enough for the environment. Matching durability to real operating conditions ensures long-term reliability, reduces maintenance, and protects your RFID investment over time.

Choosing the Right RFID Frequency

Next, it’s important to understand the frequency options available with passive RFID tags. There are three primary frequencies to choose from: low frequency (LF), high frequency (HF), and ultra-high frequency (UHF).

When deciding which one to use, the answer is not universal—it depends on read distance requirements, environmental control, and how the tagged items move through your process.

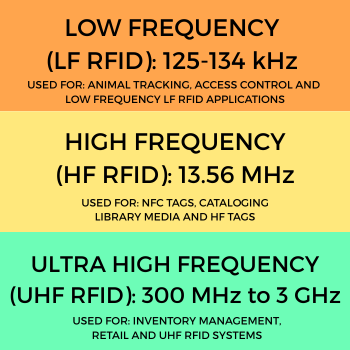

Low Frequency (LF) and High Frequency (HF): Short Range, Controlled Environments

LF (125–134 kHz) and HF (13.56 MHz) are best suited for short-range, highly controlled applications.

LF tags typically offer very limited read distances but perform reliably in environments where close proximity is expected. They are commonly used in access control, animal identification, and secure entry systems where tags are intentionally brought near the reader.

HF tags, including NFC (Near Field Communication), also operate at short range. They are ideal when items are scanned one at a time and close to the reader—such as library systems, patient tracking in healthcare settings, or contactless transactions. HF performs well when read zones are tightly defined and item spacing is controlled.

Choose LF or HF when:

• Read range requirements are short.

• Tags are intentionally presented to the reader.

• The environment is structured and controlled.

• Precision at close distance is more important than speed at scale.

UHF: Longer Range, Supply Chain and Logistics

UHF (860–960 MHz) is typically the best choice for supply chain, logistics, warehouse, and manufacturing environments.

UHF tags offer significantly longer read ranges compared to LF and HF. They can read multiple tags simultaneously and are well-suited for portal reads, dock doors, conveyor systems, yard management, and inventory tracking. Speed and efficiency are major advantages in these applications.

Because UHF supports longer distances and bulk reading, it is commonly used in:

• Warehouse and distribution centers

• Manufacturing operations

• Returnable container tracking

• Asset management

• Electronic toll collection and parking systems

Choose UHF when:

• You need longer read distances.

• Multiple items must be read quickly.

• Assets move through portals or open read zones.

• The application supports broader, more dynamic workflows.

For most supply chain and operational tracking applications discussed in this article, a passive UHF tag is typically the most appropriate choice due to its read range, scalability, and efficiency.

Choosing the Right RFID Tag for Your Application

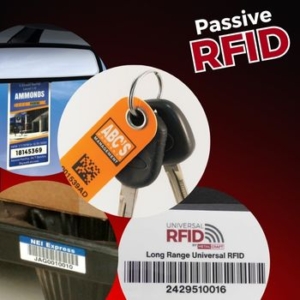

Passive RFID

Passive RFID tags are the most commonly used option across supply chain and asset tracking applications. They do not contain an internal power source; instead, they draw energy from the RFID reader’s signal to transmit data.

Because they have no battery, passive tags are cost-effective, scalable for high-volume deployments, and low maintenance. They are ideal for applications requiring short to mid-range reads, such as inventory tracking, returnable container management, manufacturing workflows, and access control.

Choose passive RFID when:

• You need an economical solution for large quantities of assets

• Read distances are moderate and infrastructure is in place

• Long-term maintenance must be minimal

• The goal is operational efficiency at scale

Active RFID

Active RFID tags contain their own internal power source (battery), allowing them to transmit signals over much longer distances than passive tags.

Because they broadcast signals independently, active tags support long-range tracking, real-time location systems (RTLS), and high-value asset monitoring across large facilities or yards. However, this performance comes at a higher cost per tag and requires battery management over time.

Choose active RFID when:

• Long read ranges are required (hundreds of feet or more)

• Real-time location visibility is critical

• Assets are high value and justify higher tag cost

• Infrastructure supports battery-powered tracking

Semi-Passive (Battery-Assisted Passive) RFID

Semi-passive RFID tags—also known as battery-assisted passive (BAP)—offer a middle ground between passive and active systems.

These tags contain a battery that powers the chip but still rely on the reader to initiate communication. This design improves read sensitivity and performance compared to standard passive tags, especially in challenging environments, while maintaining more controlled communication than fully active systems.

Choose semi-passive RFID when:

• You need improved performance beyond passive capabilities

• Environmental conditions reduce standard passive read reliability

• Long range is helpful but full active broadcasting is unnecessary

• You want balanced cost and performance

How to Choose

Selecting the best RFID tag depends on several practical factors:

• Application goals – Are you tracking inventory, high-value assets, or real-time movement?

• Budget constraints – What is the acceptable cost per tag at scale?

• Required read range – How far must the reader detect the tag?

• Environmental factors – Will heat, metal, moisture, or movement impact performance?

Matching tag type to these operational realities ensures your RFID system delivers reliable performance without overspending on unnecessary capabilities.

RFID Tag Size & Form Factor

RFID tags come in various sizes, from micro tags and mini tags to standard and credit-card-sized tags. Larger tags typically offer longer read ranges, but environmental conditions can also influence performance.

Tag sizes:

• Passive tags: as small as a grain of rice or as large as a windshield label

• Slim tags: down to 0.05 in thick for close-proximity systems

RFID Tag Materials and Encasement

Common materials used in RFID tags include:

• Polyester and polycarbonate (rugged and heat-resistant)

• Ceramics (for high-temp applications)

• Foam (for metal contact insulation)

• Paper and epoxy resins (for basic or durable applications)

In-mold RFID tags embed directly into assets and remain functional for the lifespan of the product.

RFID Tag Attachment Methods

RFID tags can be attached using:

• Pressure-sensitive adhesives (tamper-evident options available)

• Screws, rivets, or welding (for hard tags)

• Sewing or heat-sealing (for textile applications)

• Zip ties, hang hooks, lanyards, or keychains (for portable or temporary tags)

Attachment method depends on the application environment and asset type.

Conclusion

Understanding the different types of RFID tags—active, passive, and semi-passive—is key to implementing a successful RFID system. Factors like frequency band, tag size, power source, and environmental durability all contribute to system performance.

Whether you’re deploying HF RFID tags, UHF RFID tags, or LF RFID systems, selecting the right tag ensures optimal data transmission, asset visibility, and ROI.
