Craftmark Polyester Barcode Labels

Features

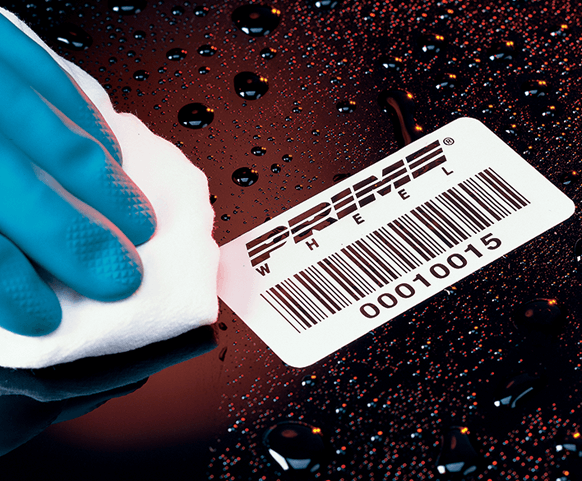

Subsurface printing protects against extreme solvents, caustics, acids and mild abrasion while eliminating need for a laminate
Digital printing process ensures bar code readability as well as crisp, clean company logos
Custom colors available at no additional charge
Durable .003" thick polyester material easily conforms to uneven or radius surface
.0035" thick, pressure-sensitive adhesive for low-surface energy materials

Request a Quote

Request a Sample

View Datasheet(PDF)

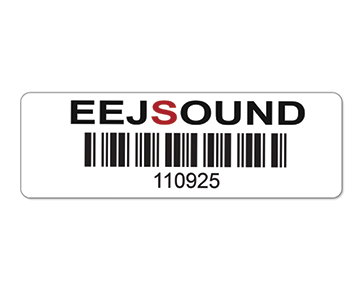

Our CRAFTMARK Polyester Barcode Labels are printed using our thickest polyester and a .0035” thick adhesive.

These labels can outperform any standard polyester label – and with an unlimited color palette they will look better doing it. Subsurface printing combined with our thickest polyester protects the logos, copy and barcode against extreme solvents, caustics, acids and moderate abrasion. This unique process eliminates the need for a laminate thereby eliminating the additional cost for the laminate as well as the possibility of delamination. The .0035” thick adhesive provides excellent adhesion to uneven, rough or slightly oily surfaces.

Four-color processing allows you to promote your company with a label that sports a company name or logo. Metalcraft’s digital printing process ensures even the most detailed logo will look crisp and clean.

Metalcraft’s 48-hour DASH Label Program

Need a quicker turnaround time for your labels? Metalcraft’s 48-house DASH Label Program provides a flat-fee rush service that offers a wide variety of polyester and polymer products to fill any application need. Customize any labels with a variety of options and sizes including styles, logos, or text. Once the order is placed, we will have your labels dashed into your hands within 48-hours, guaranteed.

D ata – provide us with your serialized information or data for inclusion at no extra cost.
A ssortment – choose from a wide variety of label options
S tyle – barcodes, logos, multi-color designs and human readable texts are welcome, customize your tag as you like
H ustle – our team will get your order out the door in 48-hours, guaranteed*

*Some restrictions do apply, talk to a Metalcraft representative for details

Potential Applications For Craftmark Barcode Labels

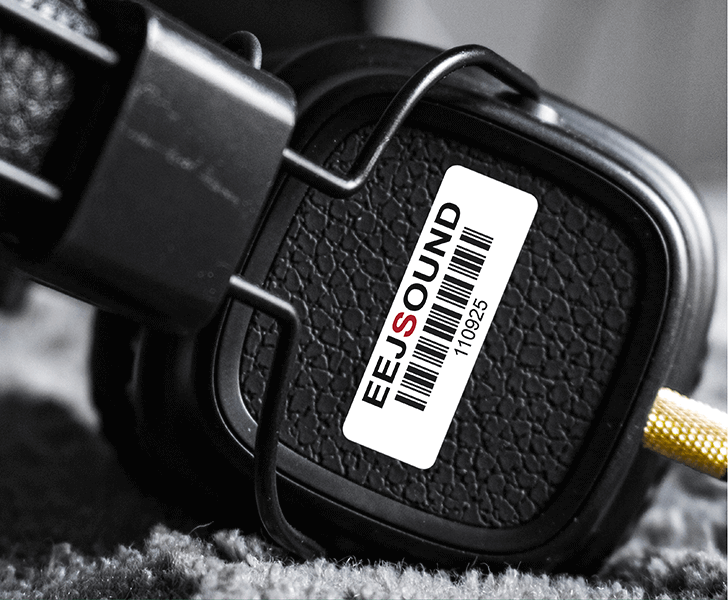

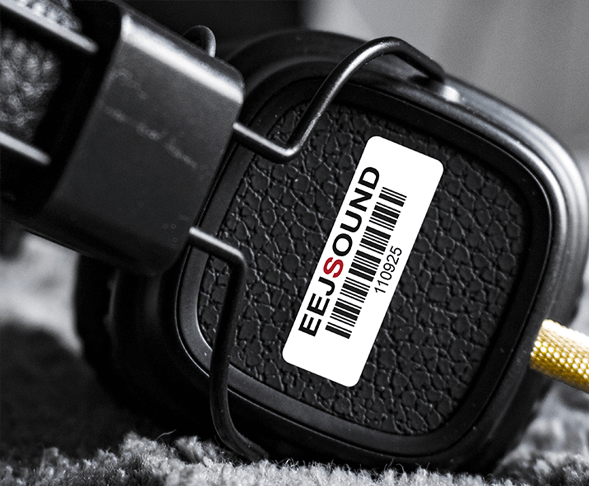

Asset Tracking – the barcode and human readable ID number on “CRAFTMARK” Polyester Barcode Labels can be used to track information about the asset the label is adhered to, i.e., laptops, furniture, containers, pallets, equipment and more.

For more information, check out our case study, Diagnosis: Effective Asset Tracking.

OEM Product Identification – the barcode and/or product identification number on “CRAFTMARK” Polyester Barcode Labels can be used for tracking purposes such as warranty and service information and typically contain one or more of the following: model number, serial number, or part number. Customers use the identification plate on products they produce and sell.

UID/IUID – “CRAFTMARK” Polyester Barcode Labels are compliant with the UID/IUID (Unique Item Identification mandate with the Department of Defense (DoD).

Work-in-Process – the barcode and/or identification number on “CRAFTMARK” Polyester Barcode Labels can identify a “batch” OR “lot” of product or just simply identify each product as it travels through the production process.

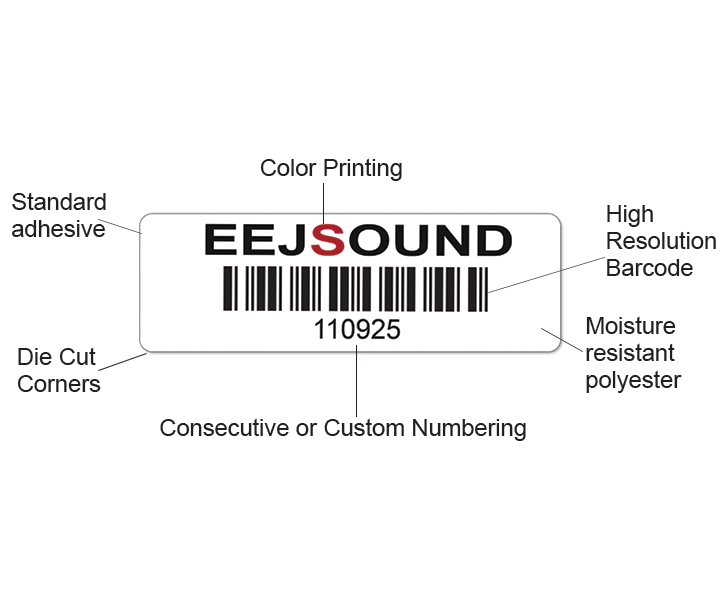

Specifications Data

Material	.003" thick white or silver polyester
Bar Code & Serialization	Serialized/unserialized numbers and bar code with human readable numbers
Label Copy	The label copy may include block type, stylized type, logos or other designs
Colors	Standard colors include black, red, yellow, green, orange, purple, dark blue or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard Adhesive	.0035" adhesive with excellent durability, particularly suited for a wide range of polyolefin and other low-surface energy materials (powderpaints, etc.)
Sizes	2" x 1"; 2" x .625"; 1.25" x .5"; 1.5" x .75"; 2" x .75"; 1.75" x .5"
Packaging	Produced and shipped in roll form. Strip form is optional. Cleaning solution is provided to assist in applying to a clean surface. Cartons are clearly marked to indicate serial numbers of labels.
Shipment	11 business days

Destructive Test Data

Chemical Test Summary

Labels were applied to a clean glass substrate and submerged in the following chemicals for 6 hours. A 180 degree peel test was performed on each label to measure peel strength and a percentage peel strength change was calculated based on a sample left in standard room temperature dry conditions.

Chemical Test Data

Chemical Resistance of Adhesive
	Water	Glass Cleaner	Bathroom Cleaner	Isopropyl Alcohol	Acetone	NaOH pH 12	HN03 pH 12	HCI pH 12	Brake fluid	Diesel fuel
Peel strength (control)	9.1	9.1	9.1	9.1	9.1	9.1	9.1	9.1	9.1	9.1
BC grade loss after chemical exposure	none	none	none	none	none	none	none	none	none	none

Temperature Test Summary

Labels were applied to a clean glass substrate and heated to the temperatures listed below for 1 hour. Peel tests were performed to compare change in adhesive strength and bar codes were graded before and after testing to measure image degradation severity.

Temperature Test Data

Adhesive Strength Change after Heat Exposure
	104°F/40°C	212°F/100°C	302°F/150°C	392°F/200C
Peel Strength (control)	9.1	9.1	9.1	9.1
Actual Peel Strength (lb/in)	8.1	8.1	8.2	3.4

Read Range Test Data

Barcode Readability Test Data

Bar code grade loss after heat exposure
104° F/40° C for 1 hour	212° F/100° C for 1 hour	302° F/150° C for 1 hour	392° F/200° C
0	2	2	no read

Abrasion Test Summary

Labels survived more than 6,000 revolutions on Taber Abrader using Calibrase H18 wheel with 1000g weight and remained readable with a bar code reader.

Abrasion Test Data

Label Adhesion Test Data

Pull Test Data
