Windshield Tags

Features

  • Mild and moderate. Resists moderate solvents and caustics/acids
  • Unlimited color options with choice of up to four standard or custom colors
  • Digital printing process provides for greater print capability with detailed logos or special designs
  • Double-sided registered option available
Request a Quote
Request a Sample

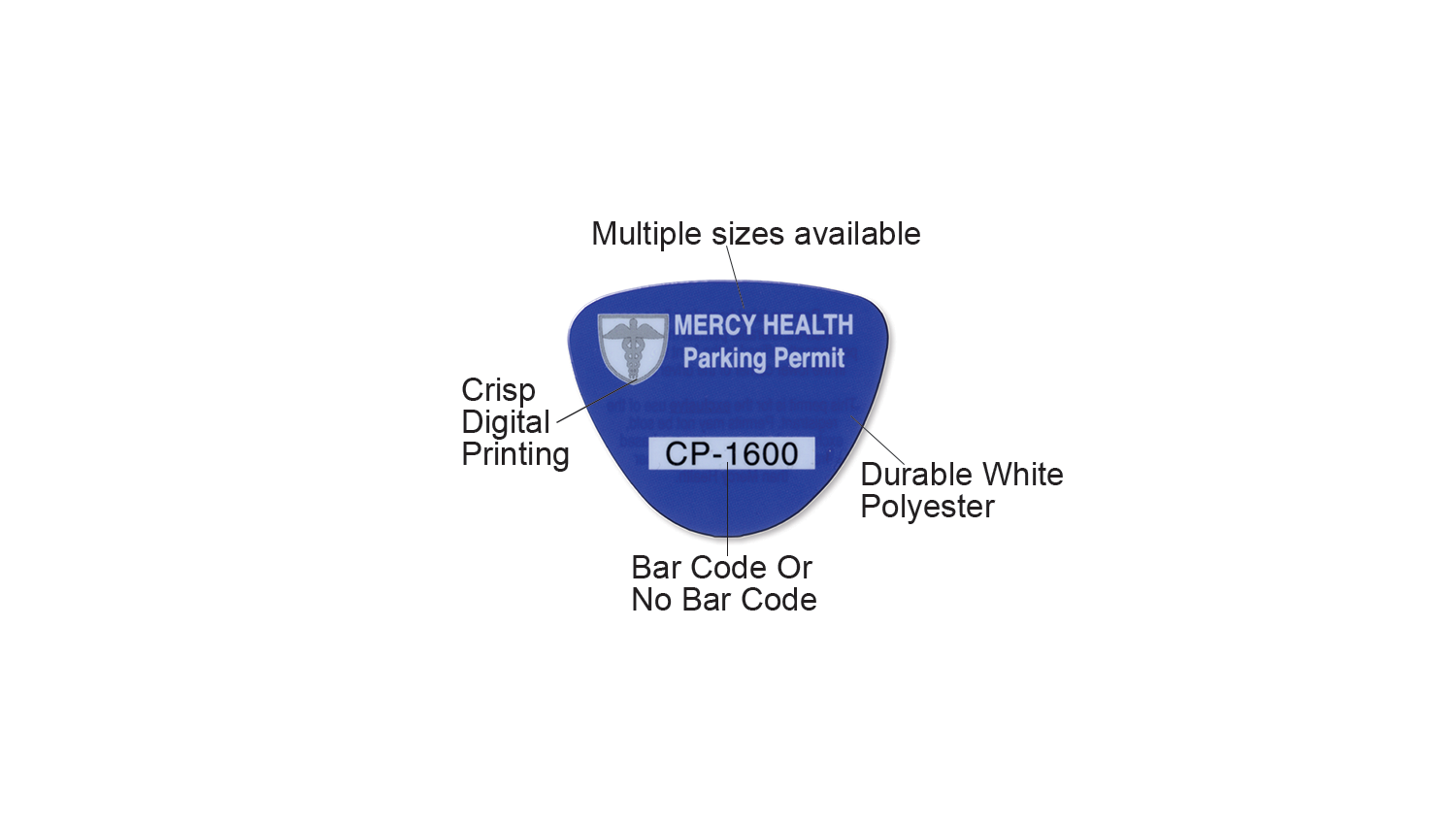

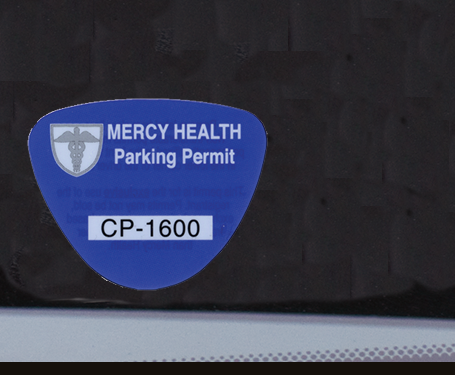

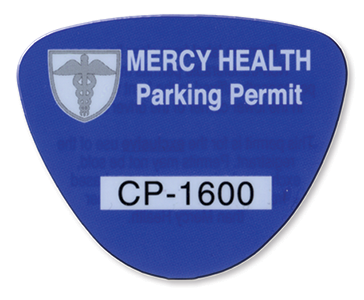

Metalcraft's Windshield Tags offer a more accurate and secure way to allow access into various locations.

These tags can be used for a gated community, company/corporate secured parking or even a car wash. Double-sided registered options are now available. This means that you can print a registered company logo or instructional information on the second side.

Specifications Data
Material Polyester
Serialization Barcode and human-readable equivalent is digitally printed – providing excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional linear and 2D symbologies available. Although this product is primarily marketed as a bar code product, we can produce it with human-readable numbers only or unserialized.
Label Copy The label copy may include block type, stylized type, logos or other designs
Colors Standard colors include black, red, yellow, green or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard Adhesive Pressure-sensitive adhesive
Sizes Various sizes available
Packaging Shipped on convenient rolls with scrap matrix removed for ease of removal. Cartons are clearly marked to indicate serial numbers of labels.
Shipping 11 Days
Destructive Test Data
Chemical Test Summary
Label Adhesion Test: This rating measures label adhesion after being exposed to chemicals listed below for a 2 hour soak. Chemical emergence tests are rated on a scale of 100 to 0:
100 = No Effect 25 = Label Falls Off
75 = Oozing Adhesive 0 = Label Destroyed
50 = Label Slides Off
Chemical Test Data
Test Conditions Result
Isopropyl alcohol 100
Acetone 25
Water 100
Bath Soap 100
Pyroil brake fluid 25
Glass cleaner 100
Temperature Test Data
Read Range Test Data
Barcode Readability Test Data
Abrasion Test Data
Label Adhesion Test Data
Pull Test Data
