RFID Server Rack Tags

Features

  • Ideal for applications with tight spaces (i.e. blade servers) where standoff will not work
  • Made of flexible polyester material
  • Digital printing process provides for greater print capability with detailed logos or special designs
  • Read range 8ft. when flagging off metal surface
  • Compatible with RFID Tracking Software
Request a Quote
Request a Sample
View Datasheet(PDF)

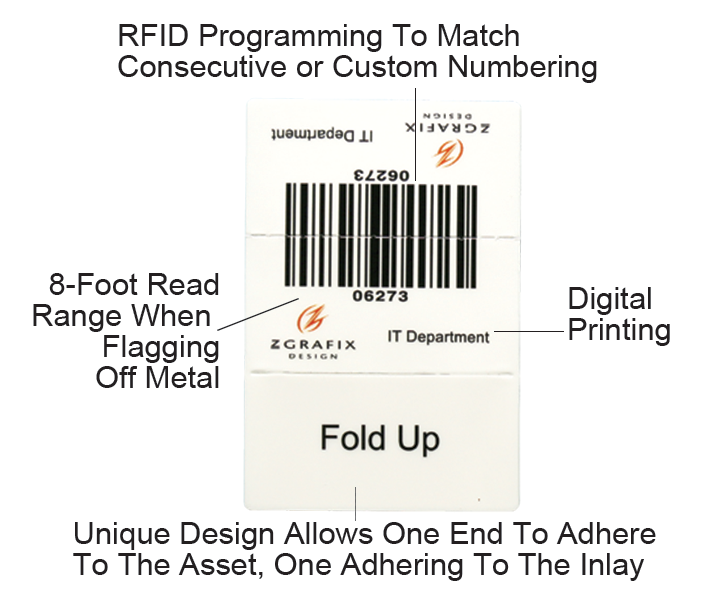

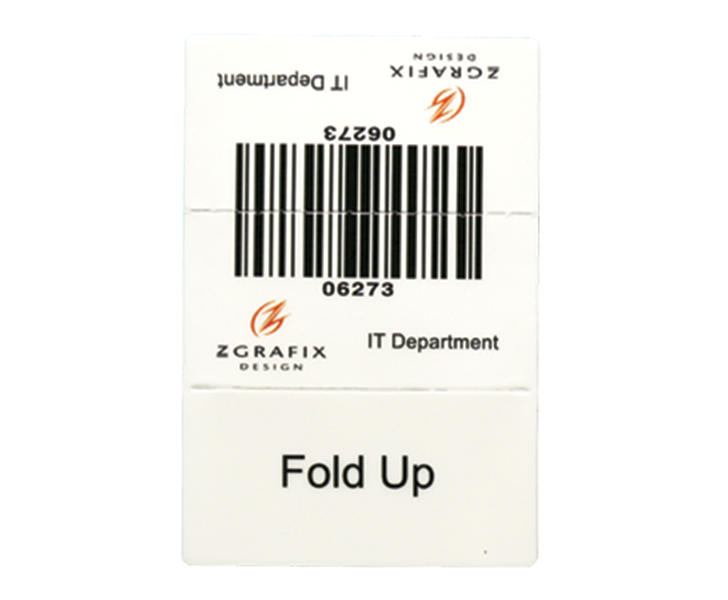

A great alternative to metal mount applications where a standoff will not work, Metalcraft’s RFID Server Rack Tag consists of an adhesive label that protects the encapsulated RFID inlay and a non-adhesive, folding tab that offsets the RFID inlay. The label has three sections: a middle section housing the RFID inlay; one end adheres to and provides extra protection for the inlay; while the other end adheres to the asset being tracked.

All Metalcraft RFID Tags are designed with our proven durability, ready to withstand repeated usage in rugged environments, generating a greater ROI for your business. Each tag can be programmed to match the variable information printed on the label. Every product features a subsurface printed digital printing process which ensures crisp details on even the most complex logos for maximum clarity. Four color processing is available for limitless color and design options.

Potential Applications for RFID Server Rack Tags

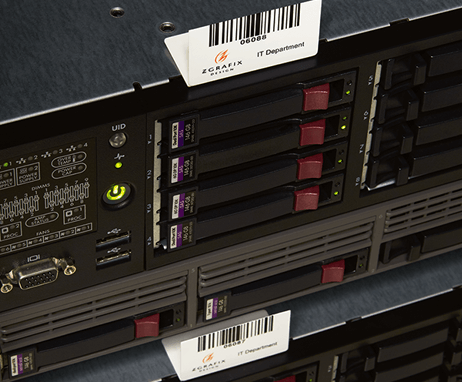

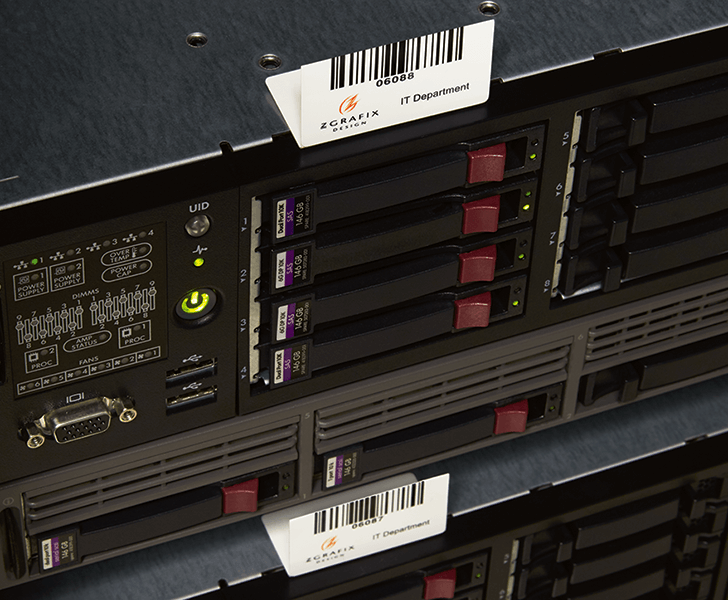

Asset Tracking – the RFID Server Rack Tag can be used to track blade servers and other IT equipment where space is an issue.

Specifications Data
Material .002” polyester; approximately .035” total product thickness
Serialization Bar code and human-readable equivalent is produced using the latest high-resolution digital technology available, which provides excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional symbologies include code 128, i 2 of 5, 2D Datamatrix and QR code. The bar code and human readable can be programmed into the RFID inlay as long as the information is in decimal or hexadecimal format. The programmed information can be locked, which prevents the RFID inlay from being rewritten. Metalcraft can enclode up to 24 characters into the RFID inlay. If desired, metalcraft can encode information that differs from the bar code and human readable.
Label Copy The label copy may include block type, stylized type, logos or other designs. All copy, block type, stylized type, logos, designs, and bar code are subsurface printed. This unique process provides excellent resistance to solvents, caustics, acids and moderate abrasion.
Colors Standard colors include black, red, yellow, green, dark blue, purple, orange, dark blue, purple, orange and blue. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard Adhesive High performance adhesive
Frequency Range 860-960 MHz
Sizes 3" x 2"
Packaging Shipped in “work-out-of” cartons for convenient application.
Destructive Test Data
Chemical Test Summary
Test of label structure and printed image as well as readability of inlay.
Chemical Test Data
Test Conditions Result
Water no effect
Glass cleaner no effect
Bathroom cleaner no effect
Alcohol no effect
Acetone Delaminated, Inlay Unreadable
NaOH no effect
Nitric Acid no effect
Temperature Test Data
Read Range Test Summary
Tag has a read range of 8ft. using Motorola AR400 reader at 24 dbm.
Read Range Test Data
Barcode Readability Test Data
Abrasion Test Data
Label Adhesion Test Data
Pull Test Data
