RFID On Site Printable Windshield Tags

Features

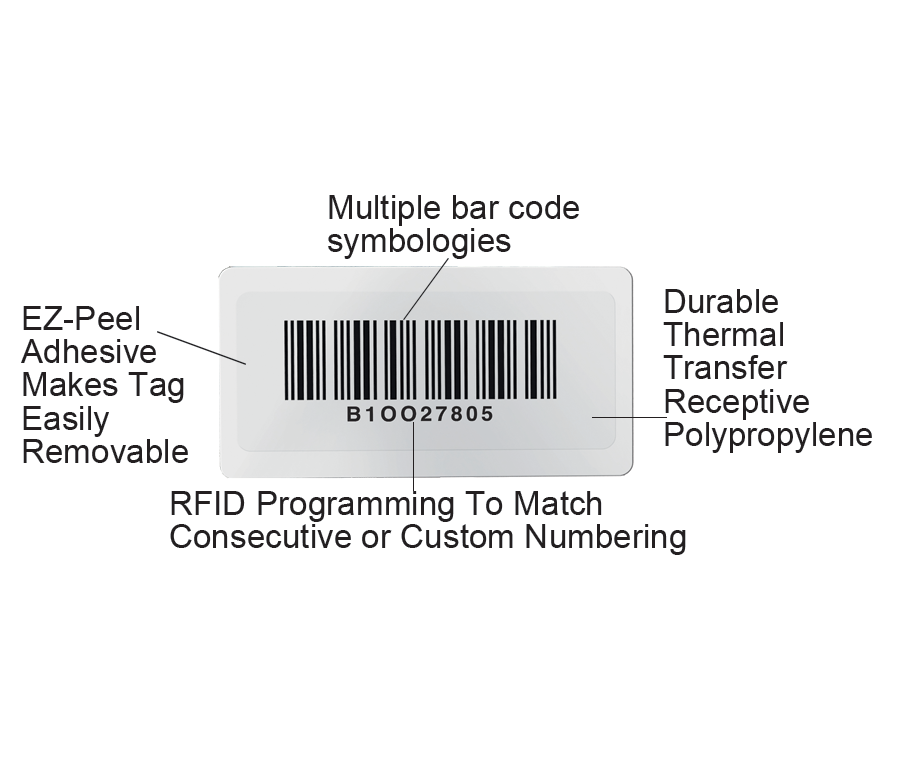

  • Specialized inlay reads well through windshield glass.
  • EZ-Peel adhesive makes tag easily removable while leaving no residue behind.
  • Designed for easy setup for printing and RFID encoding
  • Thermal transfer printer receptive
  • Ideal for use on rental cars, rental equipment and for controlling guest vehicle access to corporate facilities, gated communities or downtown parking lots
  • Compatible with RFID Tracking Software
Request a Quote
Request a Sample
View Datasheet(PDF)

Metalcraft’s Onsite Printable RFID Windshield Tag is specially designed to allow easy printing and encoding of RFID tags on-demand, providing a reliable, cost-effective solution for your tracking application.

The removable adhesive is perfect for those times you need a “temporary” tag – whether it’s for rental cars, rental equipment or controlling guest vehicle access to corporate facilities, gated communities or downtown parking lots – the Onsite Printable RFID Tag offers an affordable option when you require a temporary tag that needs to be printed on-demand.

Potential Applications for Onsite Printable RFID Windshield Tags

Access Control – the RFID inlay and barcode/human readable information on Metalcraft Onsite Printable RFID Windshield Tags can be used to track and control vehicle access both in and out of secure facilities like gated communities, corporate parking lots, etc.

Asset Tracking – the barcode and human readable ID number on Metalcraft Onsite Printable RFID Windshield Tags can be used to track/inventory vehicles for car dealerships, rental cars, fleet tracking, etc.

Work-in-Process – the barcode and/or identification number on Metalcraft Onsite Printable RFID Windshield Tags identify each vehicle as it travels through the production and/or refurbishing process.

Specifications Data
Material Thermal transfer printable 2.3 mil polypropylene.
Standard Adhesive EZ-Peel Removable adhesive.
Frequency Range UHF = 860-960 MHz; HF = 13.56 MHz
Sizes 4.375" x 2.875"
Packaging Shipped on convenient rolls
Destructive Test Data
Chemical Test Summary
Samples applied to glass panels and immersed in Metalcraft standard chemicals with observations taken after 2, 24, and 48 hours.
Chemical Test Data
Length 5% salt water Glass cleaner Bathroom cleaner Isopropyl alcohol 99% Diesel fuel NaOH pH 12.0 HCI pH 1.0 Brake fluid
2 hours no effect Adhesion loss adhesion loss adhesive ooze adhesive ooze no effect no effect no effect
24 hours no effect adhesion loss adhesion loss adhesive ooze adhesive ooze no effect no effect no effect
no effect adhesion loss adhesion loss adhesive ooze adhesive ooze surface corrosion surface corrosion no effect
Temperature Test Summary
Two tags were applied to glass panels at ambient room temperature conditions and placed in a freezer set to -20°F for 24 hours. Samples retained a good bond to the glass panels and removed easily while still in the freezer just prior to removal after 24 hours. Tag inlays were still readable with the Alien ALH-9000 handheld reader post-exposure.
Two tags were applied to glass panels and subject to 150°F, 175°F, and 200°F for 1 hour each. The tags retained a good bond to the panels, and no deterioration of the tags was observed. Tag inlays were still readable with the Alien ALH-9000 handheld reader post-exposure.
Temperature Test Data
Read Range Test Summary
Theoretical read ranges in the Voyantic anechoic chamber based on testing 5 samples using the Smartrac Dogbone R6 inlay.
Read Range Test Data
Glass Plastic
Sample average 42 ft 38 ft
Barcode Readability Test Data
Abrasion Test Data
Label Adhesion Test Data
Pull Test Data
