RFID Race Timing Tags

Features

  • No foam standoff needed
  • Low profile
  • High-performance adhesive
  • Customizable
  • Thermal-transfer receptive material can be printed on site
  • NXP UCODE 8 self-tuning chip
  • EPC Class 1 Gen 2, ISO 18000-6C
  • IP68 Certified
Request a Quote
Request a Sample
View Datasheet(PDF)

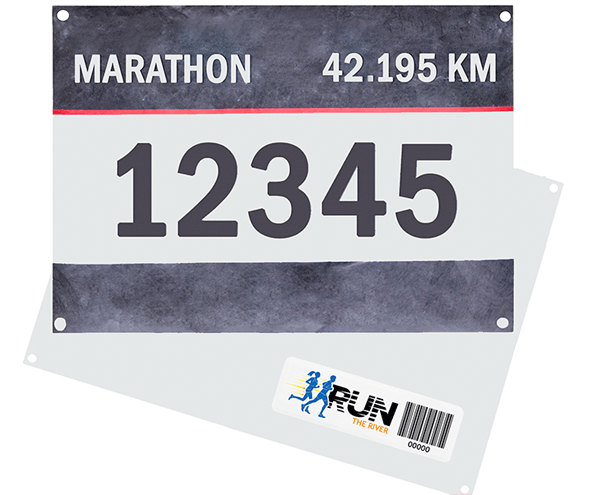

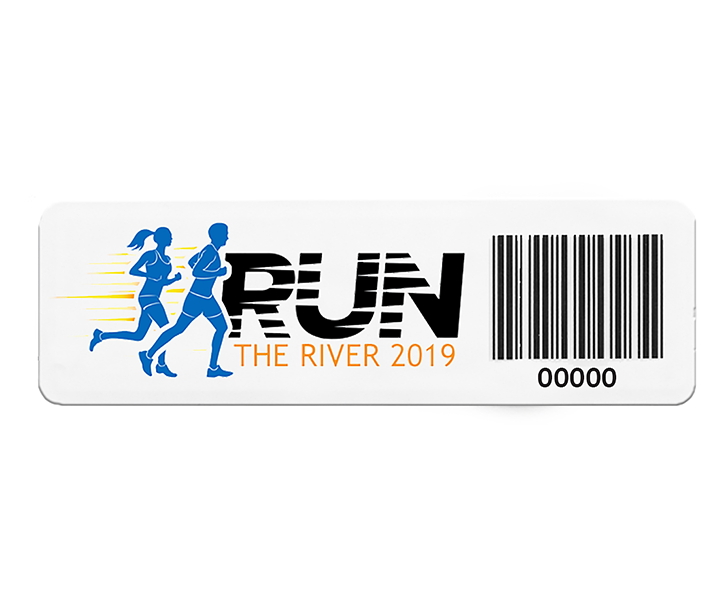

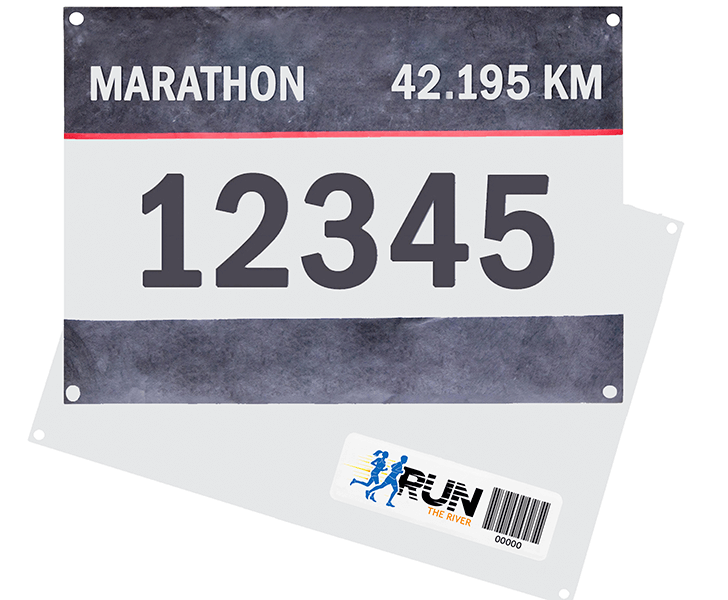

Metalcraft's RFID Race Timing Tag is a low profile RFID tag that easily adheres to race bibs and has great performance and sensitivity to track runners splits and times throughout the race. Each RFID label is customizable with your text and logo.

If you're looking for other tags for tracking people, click here.

Specifications Data
Material Polypropylene
Serialization Barcode and human-readable equivalent is digitally printed – providing excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional linear and 2D symbologies available. Although this product is primarily marketed as a bar code product, we can produce it with human-readable numbers only or unserialized.
Label Copy The label copy may include block type, stylized type, logos or other designs
Colors Standard colors include black, red, yellow, green or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard Adhesive High performance adhesive
Frequency Range 860-960 MHz
Sizes 4" x 1.25"
Packaging Produced and shipped in roll form.
Destructive Test Data
Chemical Test Data
Temperature Test Data
Read Range Test Data
Barcode Readability Test Data
Abrasion Test Data
Label Adhesion Test Data
Pull Test Data
