Removable Paint Mask Barcode Labels

Features

  • One-use .002” thick polyester paint-mask that is designed to resist tears when removing and withstands temperatures up to 250°F for short periods of time
  • Conforms to uneven or curved surfaces
  • Subsurface printing protects against extreme solvents, caustics, acids and moderate abrasion while eliminating need for a laminate
  • Digital printing process ensures bar code readability as well as crisp, clean company logos
Request a Quote
Request a Sample
View Datasheet(PDF)

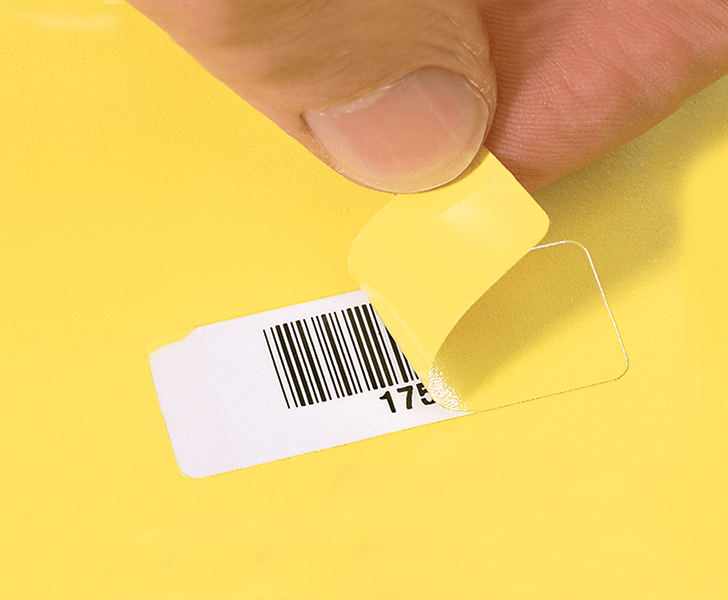

Metalcraft’s Removable Paint-Mask Barcode Labels have a unique one-time removable paint-mask.

They are designed to resist tough manufacturing environments and they can withstand temperatures up to 250°F. After painting, peel off the paint-mask for a clean barcode that's ready to scan – an ideal solution for tracking through the production process.

Specifications Data
Material.002” thick polyester; available in white or silver. This product can withstand temperatures of 250°F for up to 30 minutes of exposure.
Bar Code & SerializationBar code and human-readable equivalent is produced using the latest high-resolution digital technology available, which provides excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional symbologies include Code 128, I 2 of 5 and 2D DataMatrix.
Label CopyThe label copy may include block type, stylized type, logos or other designs. All copy, block type, stylized type, logos, designs and bar code are subsurface printed. This unique process provides excellent resistance to solvents, caustics, acids and moderate abrasion.
ColorsStandard colors include black, red, yellow, green, dark blue, purple, orange and blue. Custom colors available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard AdhesiveHigh performance adhesive
Sizes1.75" x.625"; 2" x .75"
PackagingShipped on convenient rolls for ease of removal. Cleaning solution is provided to assist in applying to a clean surface. Cartons are clearly marked to indicate serial numbers of labels.
Shipment10 business days

Work-In-Process

Destructive Test Data
Chemical Test Data
Temperature Test Data
Read Range Test Data
Barcode Readability Test Data
Abrasion Test Data
Label Adhesion Test Data
Pull Test Data

Related Products

Teflon Coated Nameplates

Teflon® Coated Nameplates are easy to clean, acid-resistant and temperature-resistant up to 500 °F.

Available with or without a barcode, Teflon® Coated Nameplates are ideal for customers who require permanent nameplates to stand up in extremely harsh environments. These nameplates are perfect for tracking assets, fugitive emissions and work-in-process. Their fast and accurate barcode reading makes the scanning process simple. Black copy, logos, and barcodes are photographically reproduced for maximum clarity and detail and then sealed within the anodic layer of the aluminum. The anodized aluminum combined with the Teflon coating makes these nameplates one of our most durable products.

Teflon® Coated Barcode Nameplates come with a standard adhesive that bonds extremely well to plastic or powder coated metal surfaces and bonds well to bare metal surfaces. This product is also available with optional holes for mechanical fasteners.

If you're looking for other metal barcode tags, click here. Staying Clean With Barcode Tracking.

View Product

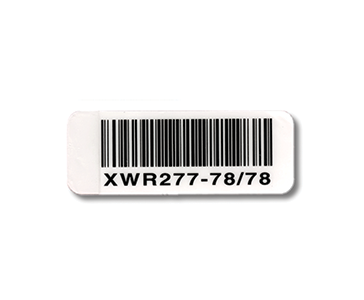

Paint-Resist Metal Barcode Nameplates

Metalcraft’s Paint-Resist Metal Barcode Nameplates can withstand many paint applications while sporting a color design.

These unique and economical tags feature a fluoropolymer laminate that resists multiple paint applications (approximately 10-12), grease and graffiti. They can withstand temperatures up to 350°F. After painting, customers simply pick off the dried paint and are left with a clean, easy-to-scan Metal Barcode Nameplate – a great product for work-in-process applications.

Available with or without a barcode, Paint-Resist Metal Barcode Nameplates are ideal for customers who require permanent nameplates to stand up in moderate to harsh environments. Black copy, logos, and barcodes are photographically reproduced for maximum clarity and detail and then sealed within the anodic layer of the aluminum. Color options are available for company logos, copy or design. Optional second colors are digitally inkjet printed.

Paint-Resist Metal Barcode Nameplates come with a standard adhesive that bonds extremely well to plastic or powder-coated metal surfaces and while also bonding to bare metal. This product is also available with optional holes for mechanical fasteners.

View Product
Permanent Paint Resist Polyester Labels

Regular barcode labels will not stand up to repeat paint applications, but Metalcraft’s Permanent Paint-Mask Barcode labels will.

These unique labels feature a special fluoropolymer laminate very similar to Teflon® coating in that it resists multiple paint applications (approximately 10-12), grease, even graffiti, and can withstand temperatures up to 250°F. After painting customers simply pick off the dried paint and are left with a clean, easy-to-scan polyester barcode label – a great solution for work-in-process.

Permanent Paint-Mask Barcode Labels are produced using a subsurface printing process that protects the logos, copy and barcode against extreme solvents, caustics, acids, and moderate abrasion. In addition, Metalcraft’s digital printing process ensures even the most detailed logo will look crisp and clean. Custom colors available at no additional charge.

View Product
